Two-direction
air vane provides
rapid, evenly
distributed room
temperatures and
comfortable air
circulation
Compressor
TOSHIBA
Built-in
dehumidification
Refrigerant
R410A
(Pre-Charged)/1450g
Easy
to Clean Filters
Cooling
Capacity
9000
BTU
Energy
Star® & AHRI®
certified
Heating
Capacity
10000
BTU
Intelligent
Multifunction
Air
Flow
750
m3/h
LCD
Display
Power
Supply
115
V / 60 Hz, 1Ph
Defrosting
Function (Heat
Pump)
Input
Power
650W
(cooling) / 720W
(heating)
Digital
24-Hour Mode
Input
Current
12A
(cooling) / 12A
(heating)
Clock
Mode
SEER
19
Sleep
Mode
EER
14
Automatic
3D Air Flow
HSPF
9.6
Remote
Adjustable Dual
Louvers
Sound
Level
39dB-high
32dB-Low (indoor)
/ 53dB (outdoor)
Auto-Restart
Function
Moisture
Removal
1
L/hr
3
Fan Speed
Min
Operating Temperature
-
15 C / 5 F
Controlled
by a hand-held
LCD Remote that
is intuitive,
easy to operate,
simple to program.
Control
System
Digital
Multifunction
infrared Remote
control with indoor
unit Dynamic digital
LED display
Installation
Kit Included (13′
/ 4 m)
Net
Weight
25.35lbs
(indoor)/82.67lbs
(outdoor)
Fresco
Tech™ system provides
seven stages of
air filtration
to kill airborne
bacteria, eliminate
odors, deactivate
harmful chemical
gases, and eliminate
up to 95% of dust,
smoke and pollen
Dimensions
36
1/4 X 8
3/4 X 11 1/2 in
(indoor unit)
30×11 1/4×23 1/4
in (outdoor unit)
1
Year on Parts
/ 5 Years on Compressor
Warranty
1
Year on Parts
/ 5 Years on Compressor
We’re
pleased
to reveal
the new

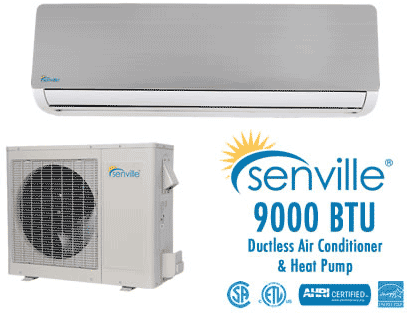

Senville
Split Air
Conditioners,
a product
of ingenious
design and
careful
manufacturing.
Senville
Air Conditioners
offer a
wide range
of products
that provide
an efficient
and quiet
solution
for your
cooling
and heating
needs. Our
ductless
split air
conditioners
provide
a smart
alternative
for older
window type
units and,
for the
cold months
of the year,
can also
be used
as heat
pumps. This
is the newest
included
innovation
with all
Senville
mini split
units.
Senville
mini splits
are completely
fortified
with an
innovative
Toshiba
Inverter
compressor.
Implementing
the newest
technology
offered,
your system
guarantees
marginal
use of electrical
resources
while sustaining
an amiable
yet affordable
housing
temperature.
As a testament
to their
minimal
energy usage,
Senville
units have
been certified
by Energy
Star &
AHRI which
grade energy
efficiency
in home
heating
and cooling
appliances.
Each Senville
product
is manufactured
to the maximum
international
standards
and backed
by more
than four
decades
of global
engineering
brilliance.
Multi
Purpose
Compressor
- The multi-faceted
Senville
ductless
air conditioners
are precision
manufactured
with Toshiba
compressors
which can
invariably
be used
as heat
pumps during
the winter
months.
The outdoor
units are
equipped
with a defrost
cycle, allowing
these mini
split Senville
units to
operate
with outdoor
temperatures
that drop
as low as
5°F
/ -15°
C. You’ll
be able
to operate
this unit
year round
and watch
the heating
and cooling
savings
rack up
through
its energy
efficient
operation.
Senville
units are
readily
equipped
with a self-diagnostic
system telling
you exactly
what the
issue might
be should
an error
in operation
arise. This
will assist
in resolving
the issue
quickly
or guiding
the technician
on the area
to repair.
Saving
Money on
Energy All
Year long
As a result
of years
of engineering
at the highest
standards,
Senville
air conditioners
are some
of the most
efficient
available
on the market.
The inverter
technology
installed
in all Senville
products
help them
reach S.E.E.R.(Seasonal
Energy Efficiency
Ratio) as
high as
19! Senville
air conditioners
have earned
certifications
from international
standards
such as
ENERGY STAR
and AHRI.
Senville
ductless
mini splits
meet the
requirements
for tax
credits
offered
in certain
states in
the USA
and provincial
areas of
Canada,
giving you
extra money
back during
tax season
for an already
affordable
Senville
unit.
The
Senville
line of
air conditioners
are pre-charged
with the
new ecologically
friendly
R410A refrigerant.
Since Freon
gases such
at the R22
causes depletion
in the ozone
layer, the
more advanced
R410A receives
great praise
from green-friendly
users and
support
group since
they do
not use
such a deteriorating
gas.
Intricate
Inverter
Technology
When working
or enjoying
time at
home, you’ll
find yourself
in constant
discomfort
when your
heating
or air conditioning
constantly
vacillates
throughout
the day.
The Inverter
Technology
included
in all Senville
Ductless
Air Conditioners
eradicates
this menacing
issue permanently.
Inverter
compressors
operate
at adaptable
speeds instead
of constant
ones. Through
this operative
manner,
those who
are at work
or home
can enjoy
a comfortable
rate of
temperature
all year
long. Elimination
of the on/off
cycle most
air conditioners
typically
implement
drastically
reduces
electrical
consumption
by up to
40%, which
was a nice
addition
to the Senville
line this
year. Inverter
air conditioners
tend have
longer life
spans in
general
due to their
speed control
capabilities.
WARRANTY
1
Year On Parts
5
Years On Compressor
About
Senville - Few Words
From the Manufacturer
Understanding how
to make tomorrow more
comfortable, efficient
and eco-friendly relies
on the understanding
of where we need to
be technologically
today and Senville,
the world’s
premier source for
ductless air conditioners,
is allocating their
every strength in
its international
research laboratories
and production sectors
to provide the consumer
with high quality
products. Simply researching
isn’t enough,
however; we constantly
take every step fathomable
to increase our production
efficiency while improving
the overall quality
of our mini split
and other ductless
lines of air conditioners.
Why
They’re Choosing
Senville
Cooling down or staying
warm is more than just
effort for Senville
when producing our mini
split air conditioner
heat pumps. We put great
effort into each produced
ductless air conditioning
unit and back it with
our superb 5 year warranty
for your benefit. Many
customers choose us
for the excellent customer
service we provide every
step of the way. In
the end, they simply
choose us for their
heating and cooling
needs for our approach
to flawless design and
usability.
Robust
Yet ‘Green’
Assembly
With over 20 years in
the industry, we understand
the industry well and,
through the design of
our ecological-friendly
mini split air conditioners,
you’ll see we
also have an affinity
for the ‘Green’
side of life. Overall,
we provide safe, secure
and sturdy products
backed by a world renowned
company thousands of
customers have come
to trust and count on
year-round in Senville.
We use a different sort
of ‘magic’
that replaces the CFC’s
of old which allow for
an atmospherically friendly
product that lasts a
lifetime.
Building
What YOU Want
Senville wasn’t
created by coincidence;
we understand that consumers
have wants, needs, and
financial constraints
to consider when purchasing
a new ductless air conditioner
or mini split. Therefore,
we simply won’t
build any unit for your
home – we’ll
create the perfect ductless
or mini split air conditioning
unit that fits your
home or business needs
like a glove without
giving you more or less
than is really necessary.
Carrying such accreditations
like CE, CSA, UL, ETL,
ISO9001, and ISO14001
should give you an idea
how we take quality,
safety and superior
design seriously around
the Senville office.
We are a caring, loving
and logical manufacturer
of air conditioning
units you want. We are
Senville.
INSTALLATION
FAQ'S
Do
Senville units require
any maintenance?
Senville units require
minimal maintenance.
Bellow you will find
two recommended tasks:
The air filters located
on the indoor unit should
be cleaned bi-weekly
depending on usage.
The air filter can be
accessed easily and
use damp cloth to clean.
This will allow efficient
air passage through
the unit during all
seasons. No cleaning
products are required.
When the unit is not
operational, use the
supplied Senville covers
on the outdoor unit.
This will prevent any
outdoor surroundings
such as dust from entering
the outdoor unit.
What
is the maximum length
between the indoor and
outdoor unit?
length and the elevation
The pipe length and
refrigerant amount:
Caution:
Capacity test is based
on standard length and
maximum allowance length
is based on system reliability
I
have added additional
Copper tubing; how much
more refrigerant (R410A)
is needed?
Procedure:
1). Connect the charge
hose to the charging
cylinder, open the 2-way
valve and the 3-way
valve.
Connect
the charge hose which
you disconnected from
the vacuum pump to the
valve at the bottom
of the cylinder. If
the refrigerant is R410A,
make the cylinder bottom
up to ensure the liquid
charge.
2).
Purge the air from the
charge hose.
Open
the valve at the bottom
of the cylinder and
press the check valve
on the charge set to
purge the air (be careful
of the liquid refrigerant).
3)
Put the charging cylinder
onto the electronic
scale and record the
weight.
4)
Operate the air conditioner
at the cooling mode.
5)
Open the valves (Low
side) on the charge
set and charge the system
with liquid refrigerant.
6).When
the electronic scale
displays the proper
weight (refer to the
table), disconnect the
charge hose from the
3-way valve’s
service port immediately
and turn off the air
conditioner before disconnecting
the hose.
7).
Mount the valve stem
caps and the service
port
Use
torque wrench to tighten
the service port cap
to a torque of 18N.m.
Be sure to check for
gas leakage.
The
cable size and the current
of the fuse or switch
are determined by the
maximum current indicated
on the nameplate which
located on the side
panel of the unit. Please
refer to the nameplate
before selecting the
cable, fuse and switch.
OPTIONAL
ACCESSORIES
EXTRA
LINESET
- 25 FT
(optional)
WALL
BRACKET
-
FOR CONDENSERS
(optional)
CONDENSER
PAD (optional)
SENVILLE
EXTRA
REMOTE (optional)
SERVICE
VALVE ADAPTER
(optional)
If you need more
linesets or need
condenser pad
or wall bracket
for the condenser,
please click this
Returns
& Cancellations
Quality
is our #1 goal.
If a product does
not meet our strict
quality control
standards, we will
not sell it. We
want you to be satisfied
with your purchase.
It is our policy
to do everything
we can to make our
customers happy.
We strive for 100%
satisfaction. Because
your satisfaction
is our number one
priority, we will
do what it takes
to ensure your experience
with KINGERSONS
a positive one.
But
out of thousands
of units sold every
year, there maybe
some instances that
the product you
received is defective.
We have the following
policy for such
situations:-
DEFECTIVE
EXCHANGE
If unit (any product)
is defective, we
will gladly make
an exchange or send
parts for repair.
If the unit is delivered
damaged, we will
have it picked up
and send a new replacement
at our cost. You
will not pay a single
cent.
Exchanges will only
be made with the
same model - if
customer upgrades
or downgrades to
a different model,
we'll treat it as
a return and new
order.
RETURNS
If
customer does not
want exchange and
wants to return
it instead and wants
a refund, customer
is responsible to
ship unit back to
our warehouse at
their own expense;
restocking fee of
19.5% will apply
regardless if defective
and original shipping
fee (from $69 to
$89 depending upon
which product you
buy) will not be
refunded. Since
total shipping and
handling fee is
never refunded to
us by the trucking
company, the shipping
fee will be deducted
from the refund
if you decide to
return, even if
the product was
sold with FREE or
50% OFF shipping
promotion.Usually
there should be
no reason for returns,
if there is any
problem with the
product we will
exchange it with
a BRAND NEW product
at no extra cost
to you. Once product(s)
is/are shipped,
all Packages Refused
are considered as
returns as well
and return policy
will apply at the
time of refund.
*
All returns and
replacements must
be requested within
30 days after the
receipt of the product.
*
If
you decide to return
the product for ANY
reason, you should
request an RA# (Return
Authorization number).
For complete return
instructions (if and
when required) contact
our office for assistance.
CANCELLATIONS If
you placed the order
and you wanted to
cancel the order
BEFORE IT
IS SHIPPED,
we will gladly cancel
your order and $15.99
cancellation fee
will be charged
and credit card
processing charges
will not be refunded.
Please make sure
that you call us
within few hours
after the order
is placed. We ship
the items out same
or next business
day. We cannot process
cancellations after
the product is shipped
out. It will be
considered as a
return instead once
the product is shipped
and you will need
to pay the return
charges.
We
want you to be happy
with your purchase
from us. We truly
appreciate your
business and continue
to do our best to
earn your trust
with each transaction.
100%
Satisfaction is
guaranteed with
all your purchases.
In case any of the
RARE complications
occur, we will handle
them upto your best
interest and satisfaction.
GE
PTAC PTHP units. Ge package terminal air conditioner system.
central air conditioner prices, central air conditioner, best
central air conditioners, central air conditioner units, home
central air conditioners, central air conditioning, central
air conditioning units, central air conditioner systems, energy
star central air conditioners, central air conditioner compressor,
central air conditioner brands, central air conditioner system,
central air conditioning prices, central air units, central
heating and air conditioning, central air conditioner cost,
central air conditioning systems, central air systems, central
air conditioner unit, frigidaire central air conditioner, 5
ton air conditioner, central air conditioning system, central
ac units, central ac
Warehouse
Locations: New York, New Jersey, California,
Florida, Missouri, Georgia, Texas,
Arizona and Canada.
All
100% Authentic Brand New Products
In God We Trust
LOWEST PRICE GUARANTEED! If we can't beat the price, we will give you a product for FREE!!!
Copyright
2004 ADVANCE INFOTECH INC. Website Designed, Owned and Maintained by Bhatia International
Wholesalers of ductless mini
split air conditioner, split air conditioning system, ductless air conditioner, mini
split ductless air conditioning system and central air conditioning system
Warehouse
Locations: New York, New Jersey, California, Florida, Missouri, Georgia, Texas,
Arizona and Canada.
IN GOD WE TRUST
