Product Name :

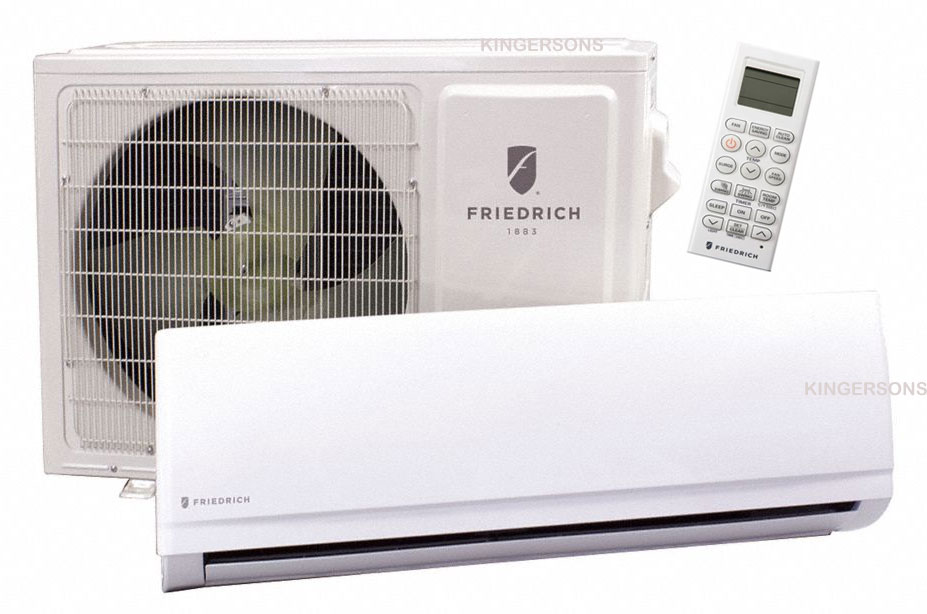

FRIEDRICH 24,000 BTU Split System with Heat Pump 2 Ton 21.5 SEER Wall-Mount M24YJ
|
|
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
- Model: M24YJ
- COOLING CAPACITY: 22,000 BTU
- HEATING CAPACITY: 27,000 BTU
- EFFICIENCY: 21.5 SEER
- VOLTAGE: 208/230/1
- COOL AREA (SQ. FT.): 800
The Friedrich M24YJ Mini Split Heat Pump feature variable speed compressors and fans (called Inverter Technology), which reach the desired temperature faster, maintain it more accurately and reduce energy consumption with fewer compressor startups. The Advantages of Precision Inverter System Single Zone, Friedrich ductless is superior to conventional systems. Precision Inverter technology varies the compressor, the outdoor and the indoor fan speeds, eliminating constant compressor start-ups/shutdowns that traditional systems require to maintain the set temperature. Soft start technology starts the compressor with minimal amperage at start up, saving energy versus compressors utilzing locked rotor amperage (LRA). This is especially beneficial in multizone systems where room temperature set points vary and some indoor units may be turned off in unoccupied rooms. Each system can adjust capacity and cooling output to provide only the amount of cooling needed at a given time. The result is optimal comfort with low energy costs. Attractive and high efficiency options for cooling and heating residential and light commercial spaces. Wall-mounted models mount high on an exterior wall. The attractive, neutral finish blends well with just about any decor. The units can be used individually. Super High Efficiency and Zone Cooling Capability With Friedrich Ductless Split Systems, you can cool and heat single or multiple rooms more quietly and efficiently than window air conditioners or traditional central air systems, and without the expense of ductwork. You can control individual room temperatures, and heat or cool only the areas that are occupied. The indoor cross-flow fan and a low vibration compressor provide ultra quiet operation indoors and outdoors. Convenient installation features that will get your ductless running in no time.
FEATURES Features- Precision Inverter technology (variable speed compressor).
- Soft start compressor.
- High efficiency for low operating cost.
- DiamonBlue Advanced Corrosion Protection.
- Auto Clean indoor coil.
- Cooling/Heating/Fan/Auto mode.
- Surge Cool/Heat.
- Natural air flow.
- 4-Way auto swing.
- Ultra quiet operation.
- Sleep mode.
- Dry mode.
- Auto restart.
- Auto changeover.
- 24-hour on/off timer.
- Built-in low ambient standard, down to 14º F (Cooling mode), down to 0º F with wind baffle.
- Low ambient operation down to -4º F (Heating mode).
TECH SPECS General- Cooling: 22,000 BTU
- Capacity Cooling (Min.~Max.): 3,070 ~ 30,030 BTU
- Capacity Heating@47°F: 27,000 BTU
- Capacity Heating@17°F: 17,900 BTU
- Capacity Heating (Min.~Max.): 3,070 ~ 38,898 BTU
- Cooling Amps: 7.9
- Heating Amps: 10.7
- Sensible Heat Ratio: 0.72
- SEER: 21.5
- EER: 12.5
- Voltage: 208/230/60/1
- Refrigerant Type: R410A
- Low Ambient Cooling: 14°F
- Energy Star: Yes
- Moisture Removal (Pts/h): 5.5
- Airflow (Quiet, Low, Med, High) (CFM): 300/389/512/600
- Sound Rating - Indoor (dB-A): 33/39/43/46
- Sound Rating - Outdoor (dB-A): 54
- Operating Range Cooling (Wind Baffle) (°F): 14(0) - 118°
- Operating Range Heating (°F): -4° ~ 75°
Indoor Unit- Indoor Unit: MW24Y3J
- Dimensions (H x W x D): 13-5/8" X 46-7/8" X 10-3/8"
- Net Weight: 40.0 lbs
Outdoor Unit- Outdoor Unit: MR24Y3J
- Dimensions (H x W x D): 31-1/2" X 34-5/16" X 12-5/8"
- Net Weight: 125 lbs
Line Sets- Liquid Line O.D.: 3/8"
- Suction Line O.D.: 5/8"
- Min./Max. Line Length: 10-664 ft
Electrical Data- Power Source (V): 208/230/60/1
- Minimum Ampacity (A): 19
- Cooling Watts (W): 1760
- Heating Watts (W): 2380
- Max. Td Fuse/Breaker (A): 35
- Power & Communication Cable (No. x AWG): 4 x 14
DUCTLESS SPLIT SYSTEMS LIMITED WARRANTY 1.
A) FIVE YEAR WARRANTY - FRIEDRICH AIR CONDITIONING CO. (FRIEDRICH) warrants to the original end-user of this product that should it prove defective due to improper workmanship and/or material under normal use for a period of five years from the date of installation, FRIEDRICH will repair or replace, at its option, any defective part without charge for the part. Replacement parts are warranted for the remainder of the original warranty period. B) THIS WARRANTY DOES NOT INCLUDE LABOR or other cost incurred for servicing, repairing, removing, installing, shipping, or handling of either defective or replacement parts, or complete unit. Such cost may be covered by a separate warranty provided by the installing contractor.
C) SEVEN YEAR COMPRESSOR WARRANTY- During the seven year warranty period from the date of installation, should the compressor prove defective due to improper workmanship and/or material, FRIEDRICH will furnish a replacement compressor, at no charge, which is warranted for the remainder of the original warranty period. LABOR IS NOT INCLUDED FOR INSTALLING REPLACEMENT COMPRESSOR. These warranties apply only while the unit remains at the original site and only to units installed inside the continental United States, Alaska, Hawaii, Puerto Rico, Mexico and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable local installation and building codes and good trade practices. For international warranty information, contact the Friedrich Air Conditioning Company - International Division.
D) NOTICE: To obtain service and/or warranty parts replacement, you must notify an authorized FRIEDRICH Air Conditioning Co. distributor, dealer, or contractor of any defect within the applicable warranty period.
2. Any defective part to be replaced must be made available to FRIEDRICH in exchange for the replacement part. You must present proof of the original date of installation of the product in order to establish the effective date of the warranty. Otherwise, the effective date will be deemed to be the date of manufacture plus thirty days. The return of the owner registration card is not a condition of warranty coverage. However, please detach and return it so that we can contact you should a question of safety arise which could affect you.
3. TO OBTAIN WARRANTY SERVICE, please contact your authorized FRIEDRICH distributor, dealer, or the contractor who installed the equipment. If your dealer or contractor needs assistance, the authorized FRIEDRICH distributor is available for consultation, and FRIEDRICH supports the efforts of the distributor. 4. This limited warranty applies only to units remaining at the site of the original installation (except for mobile home installations) and only to units installed within the continental United States, Alaska, Hawaii, and Canada. This limited warranty applies only if the unit is installed and operated in accordance with FRIEDRICH instructions and in compliance with applicable local installation and building codes and good trade practices.
5. THIS WARRANTY DOES NOT COVER damages caused by: (a) accident, abuse, negligence, or misuse; (b) operating the product in a corrosive atmosphere containing chlorine, fluorine or any other damaging chemicals; (c) modification, alteration, poor service practices; (d) improper matching or application of the product or components; (e) failure to provide proper maintenance and service to the product according to manufacture's instructions; (f) installation or operating of the product in a manner contrary to the instructions of the manufacturer; (g) lightning, fluctuations in electrical power or other Acts of God. This LIMITED WARRANTY also excludes all cost of installation, disconnection or dismantling the product, parts used in connection with normal maintenance such as air filters or belts and owner-required maintenance. Consult the instructions enclosed with the product for information regarding recommended maintenance.
6. No one is authorized to change this LIMITED WARRANTY in any respect, or to create any other obligation or liability in connection with this product.
7. YOUR ONLY REMEDIES ARE PROVIDED IN THIS LIMITED WARRANTY. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR FROM THE DATE OF ORIGINAL INSTALLATION. UNDER NO CIRCUMSTANCES SHALL FRIEDRICH BE LIABLE TO THE OWNER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THIS PRODUCT, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT OR OTHERWISE.
8. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental, special or consequential damages, so the above limitations or exclusions may not apply to you.
9. This warranty gives you specific legal rights, and you may have other rights which vary from state to state and province to province.
