Product Name :

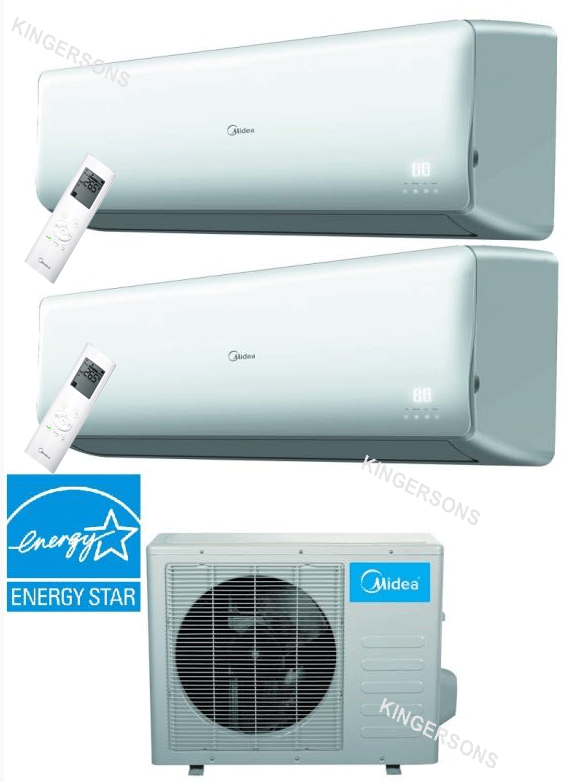

MIDEA PREMIER SEER 21.5 HYPER HEAT 18000 BTU DUAL ZONE HEAT PUMP 9K+12K Wall Mount System SEER 21.1
|
|
|
|
|
|
Item# :
|
DLCMRAH18BAK-DLFSHAH09-12
|
|
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
KEY FEATURES- Space Saving Installation
Up to five indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time. - Multiple Indoor Unit Styles
Flexibility on the options of indoor unit styles to fit any application or need.
FEATURES
- Available in 208/230V
- Connect 1 ~ 2, multiple style indoor units
- Built-in basepan heater
- Quiet outdoor operation, as low as 62 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- Total piping length 131~328 ft. (40~100 m.)
- Vertical lift/prop piping length 49~65 ft. (15~20 m.)
- Cooling operating range -13°~122° F (-25°~50° C)
- Heating operating range -22°~86° F (-30°~30° C)
| DLCMRA Outdoor Unit | | Heat Pump | | Size | 18 | | Outdoor Model | DLCMRAH18BAK | | Max Number of Zones | 2 | | Performance Non-Ducted | | ENERGY STAR® | NO | | Cooling System Tons | 1.4 | | Cooling Rated Capacity | Btu/h | 17,000 | | Cooling Cap. Range Min - Max | Btu/h | 5,810~21,940 | | SEER | 21.1 | | EER | 12.5 | | Heating Rated Capacity (47° F) | Btu/h | 18,000 | | Heating Maximum Capacity (5° F) | Btu/h | 13,800 | | Heating Cap. Range Min - Max | Btu/h | 5,760~24,480 | | HSPF | 9.7 | | COP (47° F) | W/W | 3.5 | | COP (5° F) | W/W | 2.7 |
KEY FEATURES- ECO Mode
The intelligent 8-hour night cycle program saves up to 60% of energy to make it more comfortable at night when sleeping. - Follow Me
Built-in temperature sensor in the Remote Controller will sense its surrounding temperature and adjust the room temperature more accurately to provide comfort.
FEATURES
- Available in 208/230V
- Up to 24.7 SEER and 11.0 HSPF when paired with the DLCSRA outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Turbo Mode
- Four fan speeds
- Sleep Mode
- ECO Mode
- Up-down louver control (fixed or swing)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 25 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
| DLFSHA High Wall | | Heat Pump | | System | | Size |
| 9 | | Indoor Model |
| DLFSHAH09XAK | | Electrical | | Voltage-Phase-Cycle | V-PhHz |
| 208/230-1-60 | | Power Supply | Indoor unit powered from outdoor unit | | MCA |
|
| 0.2 | | Operating Range | | Cooling Indoor DB Min - Max | ° F (° C) |
| 62~90 (17~32) | | Heating Indoor DB Min - Max | ° F (° C) |
| 32~86 (0~30) | | Piping | | Pipe Connection Size - Liquid | in (mm) |
| 1/4 (6.35) | | Pipe Connection Size - Suction | in (mm) |
| 3/8 (9.52) | | Indoor | | Unit Width | in (mm) |
| 31.89 (810) | | Unit Height | in (mm) |
| 11.81 (300) | | Unit Depth | in (mm) |
| 7.87 (200) | | Net Weight | lbs (kg) |
| 18.3 (8.3) | | Number of Fan Speeds |
| 4 | | Airflow (lowest to highest) | CFM |
| 147/235/294/324 | | Sound Pressure (lowest to highest) | dB(A) |
| 24.7/32.1/39.8 | | Air Throw Data | ft (m) |
| 21.75 (6.63) | | Moisture Removal | Pint/h (L/h) |
| 1.5 (0.7) | | Field Drain Pipe Size O.D. | in (mm) |
| 0.625 (16) |
| DLFSHA High Wall | | Heat Pump | | System | | Size |
| 12 | | Indoor Model |
| DLFSHAH12XAK | | Electrical | | Voltage-Phase-Cycle | V-PhHz |
| 208/230-1-60 | | Power Supply | Indoor unit powered from outdoor unit | | MCA |
|
| 0.2 | | Operating Range | | Cooling Indoor DB Min - Max | ° F (° C) |
| 62~90 (17~32) | | Heating Indoor DB Min - Max | ° F (° C) |
| 32~86 (0~30) | | Piping | | Pipe Connection Size - Liquid | in (mm) |
| 1/4 (6.35) | | Pipe Connection Size - Suction | in (mm) |
| 1/2 (12.7) | | Indoor | | Unit Width | in (mm) |
| 31.89 (810) | | Unit Height | in (mm) |
| 11.81 (300) | | Unit Depth | in (mm) |
| 7.87 (200) | | Net Weight | lbs (kg) |
| 18.3 (8.3) | | Number of Fan Speeds |
| 4 | | Airflow (lowest to highest) | CFM |
| 147/235/294/324 | | Sound Pressure (lowest to highest) | dB(A) |
| 26.1/33/41 | | Air Throw Data | ft (m) |
| 22.93 (6.99) | | Moisture Removal | Pint/h (L/h) |
| 3.2 (1.51) | | Field Drain Pipe Size O.D. | in (mm) |
| 0.625 (16) |
