Brand : Midea Concealed Duct Units
hvac prices

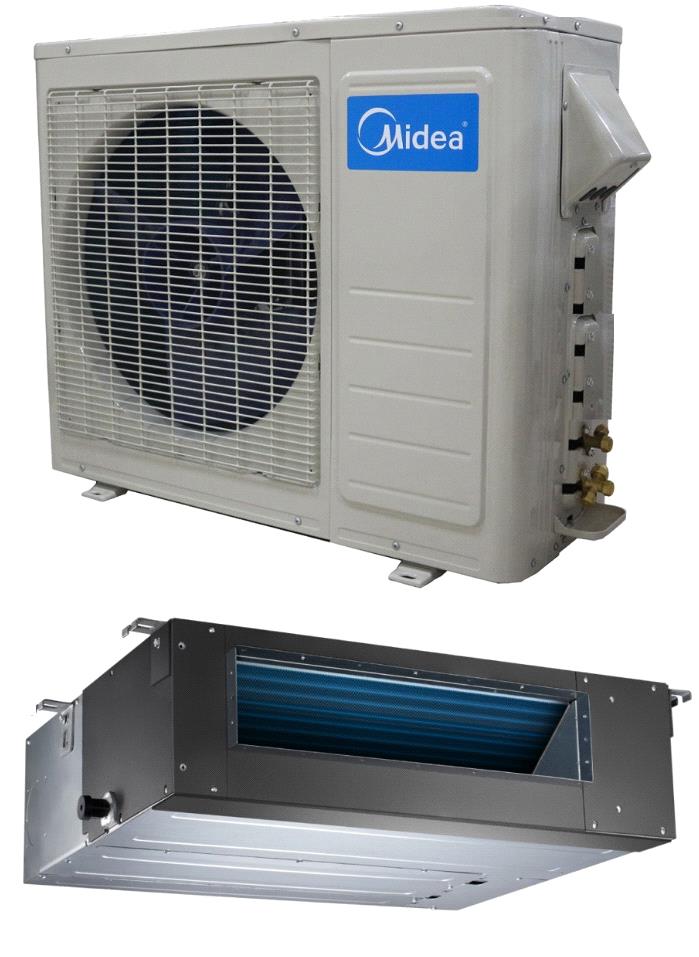

Product Name : Midea 24000 btu 20 SEER DLCSRA Single Zone Concealed Duct Air Conditioner DLCSRAH24AAK DLFSDAH24XAK

Item# :
DLCSRAH24AAK DLFSDAH24XAK
Reg Price :
$3,466.10
Your Price :
$2,410.40
Accessories :
Whats This? 25 ft copper line set Insulated and Flared
Total Price :
$2,605.40
Choose QTY :
heat pump splits

KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • 100% heating capacity at 5° F (-15° C) sizes 12-18 (208/230V)
  • Available in 208/230V
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 54.6 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 82 ~ 164 ft. (25 ~ 50 m.)
  • Cooling operating range
    • -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range
    • Sizes 9-24 (208/230V)
      -22° ~ 86° F (-30° ~ 30°C)
    • Sizes 9, 12 (115V) & 30, 36 (208/230V)
      -13° ~ 86° F (-25° ~ 30° C)

DLCLRA Outdoor Unit
Heat Pump
Size24
Outdoor ModelDLCSRAH24AAK
Electrical
Voltage-Phase-CycleV-Ph-Hz208/230-1-60
Power SupplyIndoor unit powered from outdoor unit
MCAA20
MOCP - Fuse RatingA.30
Operating Range
Cooling Outdoor DB Min - Max° F (° C)-13°~122° (-25°~50°)
Heating Outdoor DB Min - Max° F (° C)-22°~86° (-30°~30°)
Piping
Total Piping Lengthft (m)98 (30)
Lift (OD below ID)ft (m)66 (20)
Pipe Connection Size - Liquidin (mm)3/8 (9.52)
Pipe Connection Size - Suctionin (mm)5/8 (16)
Refrigerant
TypeR410A
Chargelbs (kg)5.73 (2.6)
Outdoor
Unit Widthin (mm)37.24 (946)
Unit Heightin (mm)31.89 (810)
Unit Depthin (mm)16.54 (420)
Net Weightlbs (kg)141.1 (64)
AirflowCFM2,355
Sound PressuredB(A)61.0
DLFSFAH24XAK INDOOR Unit
ENERGY STAR®NO
Cooling System Tons2.0
Cooling Rated CapacityBtu/h24,000
Cooling Cap. Range Min - MaxBtu/h11,000~29,200
SEER20.0
EER11.5
Heating Rated Capacity (47° F)Btu/h24,000
Heating Rated Capacity (17° F)Btu/h17,200
Heating Maximum Capacity (5° F)Btu/h27,950
Heating Maximum Capacity (5° F)Btu/h15,000
Heating Cap. Range Min - MaxBtu/h10,200~18,400
HSPF11.5
COP (47° F)W/W3.66
COP (17° F)W/W2.80
COP (5° F)W/W1.67

About Midea

Established in 1968, Midea (SZ:000333) is a publicly listed (and since July 2016) Fortune 500 company that offers one of the most comprehensive ranges in the home appliance industry.


Midea produces wide ranges of lighting, water appliances, floor care, small kitchen appliances, laundry, large cooking appliances, and refrigeration, in addition to our well-known specialty in home- and commercial-grade heating, ventilation and air conditioning (HVAC) products.


Headquartered in Southern China, Midea currently operates with over 100,000 employees, 21 production facilities worldwide, and 260 logistics centers in more than 200 countries. Almost 50 years of persistent growth has brought the company’s global revenue to $22.17 billion USD in 2015.


Today, Midea is a brand leader in China in many categories, the world’s largest producer of major appliances, and the world’s No.1 brand of air treatment products, air coolers, kettles and rice cookers.* Midea annually wins 40+ design awards across a variety of reputable global design shows such as reddot, iF, Good Design Award, etc.


Midea promises “to provide surprisingly-friendly solutions for the ones who treasure those tiny moments at home”, and this is summed up perfectly with the 2016-launched slogan, “make yourself at home”.


During the last decade, Midea has landed several increasingly high-profile projects, peaking with the most recent wins to install sophisticated HVAC solutions in all the 12 stadiums for sports games in Brazil in 2016.


Looking ahead, Midea is forging ahead with its strategy to continue as a highly dynamic enterprise, with the aspiration for consistent growth that is characteristic of a world-class business.


ABOUT MIDEA

Established in 1968, Midea (SZ:000333) is a publicly listed (and since July 2016) Fortune 500 company that offers one of the most comprehensive ranges in the home appliance industry.

Midea produces wide ranges of lighting, water appliances, floor care, small kitchen appliances, laundry, large cooking appliances, and refrigeration, in addition to our well-known specialty in home- and commercial-grade heating, ventilation and air conditioning (HVAC) products

WHAT THIS WARRANTY COVERS

Midea . (“Midea”) warrants your Midea Duct-Free Split Air Conditioner (“product”) against defect in materials or workmanship under normal household use, and during the warranty period set forth below, Midea will, at its option, repair or replace the product. Replacement part(s) will meet intended fit and function of the original part(s). Replacement parts are warranted for the unexpired portion of the original warranty period. This limited warranty is valid only to the original retail purchaser of the product while the system remains at the original installation site, and is not assignable or transferable to any subsequent purchaser or user.

Note: This limited warranty applies to parts only and does not cover labor / MUST BE INSTALLED BY PROFESSIONAL HVAC INSTALLER

WARRANTY PERIOD
PERIOD Midea WILL COVER
First, Second, Third, Fourth and Fifth Years (From the Date of Original Purchase.) Any Internal / Functional Parts Including Compressor
From the Sixth Year through the Seventh Year. Compressor Only. Consumer Will Be Responsible for Any Labor or In-Home Service to Replace the Defective Part.



LIMITED WARRANTY EXCLUSIONS AND LIMITATIONS

1. Service trips to deliver, pick up, install, instruct, replace fuses; connect wiring or plumbing; or correct unauthorized repairs.

2. Transportation charges incurred in connection with warranty service.

3. Failure of product to perform during power failures and interruptions, or incorrect / inadequate electrical service.

4. Installation, set up, or adjustments of user controls.

5. Products that have had a serial number or any part thereof altered, defaced, or removed.

6. Property damages, malfunction or failure of the product, or personal injury caused by or resulting from:

(a) Accident, misuse, abuse, or negligence by the consumer;
(b) From improper installation, repair, maintenance, storage, or alteration;
(c) Product used in any manner contrary to permissible applications and instructions outlined in the Product Operation Manual including physical abuse to or misuse of the Product;
(d) Improper or deferred maintenance as described in the Operation Manual such as coil cleaning, etc., or any Product damaged by excessive physical or electrical stress);
(e) Operating the Product in a corrosive or wet environment containing chlorine, fluorine, or any other hazardous chemicals;
(f) Installation, alteration, repair or service contrary to permissible applications and instructions outlined in the Product Operation Manual
(g) Improper matching of Product components; (h) Improper sizing or design of the Product; (i) Inadequate air supply; (j) Improper repair using parts not approved or specified by the manufacturer;
(k) Use of accessories or components that are not compatible with the Product; (l) Leaky, broken, or frozen water pipes, or restricted drain lines; (m) Modification of or incorporation into other products;
(n) Freight or handling damage, damage caused by force majeure, or other factors such as power surge damage caused by lightning and fluctuations in or interruptions of electrical power;
(o) Unpacking and / or removal of protective shipping;
(p) Increases in utility costs and additional utility expenses. No other warranty is applicable to this product.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states and / or territories do not allow the exclusion or limitation of incidental / consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you, the original purchaser, specific legal rights; you may also have other rights that vary from state to state or territory to territory.


SHIPPING DETAILS

Mostly All Of Our Products Are Shipped Same Or Next Day

Your product will be mostly shipped using Freight Company such as SAIA, ESTES, Old Dominion, FEDEX or UPS and will be delivered in 1-5 business days depending upon your geographical location from our warehouses. We ship products from warehouses in NY, NJ, FL, CA,AZ, TX And MO. Mostly if you are close to our warehouses, you should receive the Product in 1-3 business days. We will email you your tracking number soon as its shipped out or you can log into your account on our website by using your email address and password you created at the time of placing order to check all the shipment and product details.
Please remember we only ship to 48 states within United States. Due to expensive shipment fee we do not ship to Hawaii & Alaska. We do not ship to Canada, Puerto Rico, Jamaica and other countries due to custom issues.

Though above shipment and delivery process is what we normally practice, under unforseen circumstances they cannot be guaranteed at all times. But we do our best and mostly succeed to ship the product either same or the next day.

Overnight Shipping Details (if required)

We can ship overnight or by Second Day Air. But beacuse these are air conditioners and the package weighs more than 90 pounds usually, shipping overnight can result in the package being mishandled and delivered damaged. Plus it cost anywhere from $180-$850 more than regular shipping depending upon your location from our warehouse. Feel free to email us with such enquiries.

Delivery Acceptance, Returns, Exchanges and Cancellation Policy.

We truly appreciate your business and for the past 2 decades being in this business we have continued to do our best to earn customer trust with each transaction. We want you to be happy with your purchase.

100% Satisfaction is guaranteed with all your purchases. In case any of the RARE complications occur, we will handle them upto your best interest and satisfaction.

Delivery Acceptance Terms:
If you receive a package that seems damaged or dented, please open the package in front of the driver and after inspection if you see the product has a severe damage you can refuse the package and call us immediately. We will then arrange a new shipment (Free Replacement) ASAP.

Please note: If the box looks visibly damaged, the product inside may still be in perfect condition as they are well padded for shipping purposes.

PLEASE DO NOT SIGN OR REFUSE THE PACKAGE WITHOUT INSPECTING THE CONDITION OF THE PRODUCT INSIDE. Please take pictures if needed, accept or refuse shipment based upon the condition of the product in the box, not based upon the condition of the box. Please remember if you signed off on a delivery document, insurance cannot be filed if cosmetic damage is found at a later date, as it is considered to have happened after delivery at jobsite.

If you need to get in touch with KINGERSONS, please call KINGERSONS customer service number at 1-386-951-1722 OR email us with your query. AS PER OUR WEBSITE, BELOW IS OUR EXCHANGE/RETURN POLICY FOR YOUR REFERENCE.


DEFECTIVE EXCHANGE
If unit (any product) is defective, depending upon the brand you buy, it will be taken care of by manufacturer warranty. Usually they will send out the replacement part within 24 hours, if replacing part is not a solution, they would probably replace the whole unit if the product was found defective. Replacement will only be made with the same model, if customer decides to upgrade or downgrade to a different model, we'll treat it as a return and a new order.

* All returns should be in original packaging and in brand new condition. Installed products are not considered brand new and cannot be returned.

* All damaged returns and replacements must be requested within 24 hours after the receipt of the product. *

Before shipping the product back, you should request an RA# (Return Authorization number), without an RA# your package will not be accepted, will be refused and sent back by the warehouse.


RETURNS
For all returns, customer is responsible to ship product back to our warehouse at their own expense; restocking fee of 19% will apply regardless if defective and original shipping fee (from $69 to $189 depending upon the product you purchased) will not be refunded as it is paid to the trucking company's and they are non-refundable.

CANCELLATIONS
If you placed the order and you wanted to cancel the order BEFORE IT IS SHIPPED, we will gladly cancel your order and $15.99 cancellation fee will be charged and 3% credit card processing charges will not be refunded. Please make sure that you call us within few hours after the order is placed. We ship the items out same or next business day. We cannot process cancellations after the product is shipped out. It will be considered as a return instead once the product is shipped and you will need to pay the return charges. If the delivery of the shipment is refused above return policy will apply. Once the item is shipped, the shipping company will not refund us the shipping fee back and will charge us for shipping both ways, this will not be refunded if cancelled after the product is shipped and 19% restocking fee will apply.



THANK YOU ONCE AGAIN FOR SHOPPING WITH US!
