Brand : TOSOT Quad Zone Systems
hvac prices

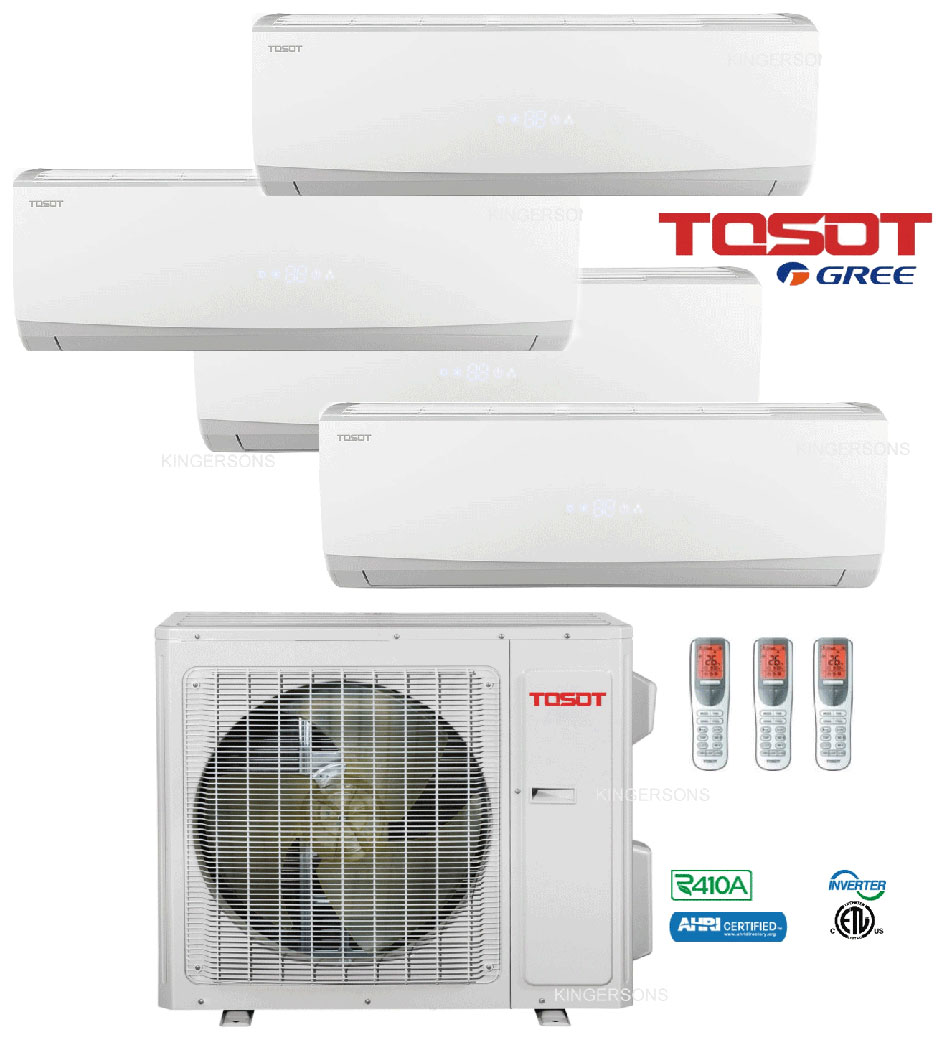

Product Name : TOSOT QUAD ZONE SPLIT AIR CONDITIONER 36,000 BTU WITH 3 x 9,000 18,000 BTU WALL UNIT SEER 21

Item# :
TM36H4O-TW09HQ2C2DI-TW09HQ2C2DI-TW09HQ2C2DI-TW18HQ
Your Price :
Choose QTY :
heat pump splits



FEATURES & BENEFITS

  • High Efficiency up to 22 SEER
  • Sound Levels down to 56 dB(a)
  • Low Ambient Cooling to and Low Ambient Heating
  • Multi-point Diagnostics
  • Intelligent Defrost
  • R410A Refrigerant
  • Heavy Gauge Steel Cabinet

FEATURES & BENEFITS

  • 9K BTU - 24K BTU
  • 4- Fan Speeds
  • IR Remote Controller
  • Turbo Mode
  • Remote Control Lockout
  • Power Failure Recovery
  • XK-41 Wired Controller (Optional)
  • Vertical Swing Louver
  • Cleanable Air Filter
  • Dry Coil Mode for Anti-Mildew Protection

FEATURES & BENEFITS

  • 9K BTU - 24K BTU
  • 4- Fan Speeds
  • IR Remote Controller
  • Turbo Mode
  • Remote Control Lockout
  • Power Failure Recovery
  • XK-41 Wired Controller (Optional)
  • Vertical Swing Louver
  • Cleanable Air Filter
  • Dry Coil Mode for Anti-Mildew Protection

FEATURES & BENEFITS

  • 9K BTU - 24K BTU
  • 4- Fan Speeds
  • IR Remote Controller
  • Turbo Mode
  • Remote Control Lockout
  • Power Failure Recovery
  • XK-41 Wired Controller (Optional)
  • Vertical Swing Louver
  • Cleanable Air Filter
  • Dry Coil Mode for Anti-Mildew Protection

FEATURES & BENEFITS

  • 9K BTU - 24K BTU
  • 4- Fan Speeds
  • IR Remote Controller
  • Turbo Mode
  • Remote Control Lockout
  • Power Failure Recovery
  • XK-41 Wired Controller (Optional)
  • Vertical Swing Louver
  • Cleanable Air Filter
  • Dry Coil Mode for Anti-Mildew Protection
  • PRODUCT SPECIFICATIONS

    • Number of Zones: 2~5
    • Compressor Type: DC Inverter-Driven Rotary
    • Energy Star: Yes
    • Coil Type: Copper Aluminum with Ant-Corrosion Coating
    • Cooling Capacity (Min/Max): 34,000 (8,900-35,800)
    • SEER/EER: 21/12.5
    • Heating Capacity (Min/Max): 42,500 (8,900-44,400)
    • HSPF/COP: 11.0/3.7
    • Cooling Temperature Range F: 0-118
    • Heating Temperature Range F: -4-86
    • Sound Level dB(a): 61
    • Total Line Length ft: 246
    • Length to Farthest Unit ft: 82
    • Elevation (ODU above IDU) ft: 49
    • Line Connection Size (Liquid-Gas/Suction) inch: 1/4~3/8
    • Voltage/Phase/Hertz: 208-230V/1/60Hz
    • MCA Rated Current Cooling) amp: 23
    • MOCP: 35
    • Unit Dimensions (WxDxH) in: 45.5 x 18.9 x 43.9
    • Package Dimension (LxWxH) in: 43.9 x 19.1 x 45.5
    • Outdoor Unit Weight (Net/Gross) lbs: 198/216

    PRODUCT SPECIFICATIONS

    • Type: Wall-Mounted
    • Cooling Capacity Btu/h: 9,000
    • Heating Capacity Btu/h: 11,000
    • Airflow (Min/Mas) CFM: 171/377
    • Sounds Level (Min/Max) dB(a): 29/43
    • Dehumidification (puts/hr): 1.7
    • Unit Dimensions (WxHxD) in: 33.4 x 11.4 x 8.2
    • Line Connection Size (Liquid-Gas/Suction) in: 1/4~3/8

    PRODUCT SPECIFICATIONS

    • Type: Wall-Mounted
    • Cooling Capacity Btu/h: 9,000
    • Heating Capacity Btu/h: 11,000
    • Airflow (Min/Mas) CFM: 171/377
    • Sounds Level (Min/Max) dB(a): 29/43
    • Dehumidification (puts/hr): 1.7
    • Unit Dimensions (WxHxD) in: 33.4 x 11.4 x 8.2
    • Line Connection Size (Liquid-Gas/Suction) in: 1/4~3/8

    PRODUCT SPECIFICATIONS

    • Type: Wall-Mounted
    • Cooling Capacity Btu/h: 9,000
    • Heating Capacity Btu/h: 11,000
    • Airflow (Min/Mas) CFM: 171/377
    • Sounds Level (Min/Max) dB(a): 29/43
    • Dehumidification (puts/hr): 1.7
    • Unit Dimensions (WxHxD) in: 33.4 x 11.4 x 8.2
    • Line Connection Size (Liquid-Gas/Suction) in: 1/4~3/8

    PRODUCT SPECIFICATIONS

    • Type: Wall-Mounted
    • Cooling Capacity Btu/h: 18,000
    • Heating Capacity Btu/h: 19,800
    • Airflow (Min/Mas) CFM: 335/599
    • Sounds Level (Min/Max) dB(a): 39/47
    • Dehumidification (puts/hr): 3.8
    • Unit Dimensions (WxHxD) in: 38.2 x 11.8 x 8.8
    • Line Connection Size (Liquid-Gas/Suction) in: 1/4~5/8
