Product Name :

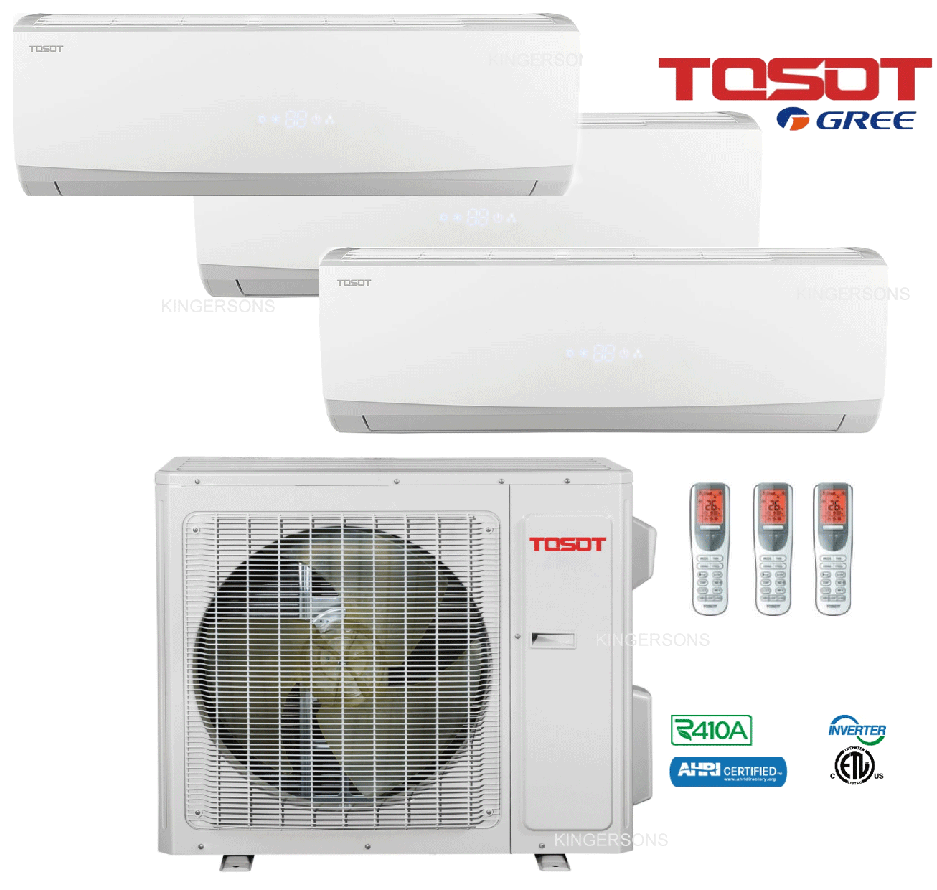

TOSOT TRI ZONE SPLIT AIR CONDITIONER 24,000 BTU WITH 2 x 9,000 12,000 BTU WALL UNIT SEER 21
|
|
|
|
|
|
Item# :
|
TM24H4O TW09HQ2C2DI TW12HQ2C2DI
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
FEATURES & BENEFITS
- High Efficiency up to 22 SEER
- Sound Levels down to 56 dB(a)
- Low Ambient Cooling and low Ambient Heating
- Multi-point Diagnostics
- Intelligent Defrost
- R410A Refrigerant
- Heavy Gauge Steel Cabinet
PRODUCT SPECIFICATIONS
- Number of Zones: 2~3
- Compressor Type: DC Inverter-Driven Rotary
- Energy Star: Yes
- Coil Type: Copper Aluminum with Ant-Corrosion Coating
- Cooling Capacity (Min/Max): 24,000 (7,500-33,000)
- SEER/EER: 21/12.5
- Heating Capacity (Min/Max): 24,000 (7,500-35,000)
- HSPF/COP: 11.0/3.7
- Cooling Temperature Range F: 0-118
- Heating Temperature Range F: -4-86
- Sound Level dB(a): 59
- Total Line Length ft: 197
- Length to Farthest Unit ft: 65
- Elevation (ODU above IDU) ft: 32
- Line Connection Size (Liquid-Gas/Suction) inch: 1/4~3/8
- Voltage/Phase/Hertz: 208-230V/1/60Hz
- MCA Rated Current Cooling) amp: 23
- MOCP: 30
- Unit Dimensions (WxDxH) in: 38.6 x 17.3 x 31.1
- Package Dimension (LxWxH) in: 42.5 x 18.9 x 33.1
- Outdoor Unit Weight (Net/Gross) lbs: 152.9/163.9
FEATURES & BENEFITS
- 9K BTU - 24K BTU
- 4- Fan Speeds
- IR Remote Controller
- Turbo Mode
- Remote Control Lockout
- Power Failure Recovery
- XK-41 Wired Controller (Optional)
- Vertical Swing Louver
- Cleanable Air Filter
- Dry Coil Mode for Anti-Mildew Protection
FEATURES & BENEFITS
- 9K BTU - 24K BTU
- 4- Fan Speeds
- IR Remote Controller
- Turbo Mode
- Remote Control Lockout
- Power Failure Recovery
- XK-41 Wired Controller (Optional)
- Vertical Swing Louver
- Cleanable Air Filter
- Dry Coil Mode for Anti-Mildew Protection
FEATURES & BENEFITS9K BTU - 24K BTU4- Fan SpeedsIR Remote ControllerTurbo ModeRemote Control LockoutPower Failure RecoveryXK-41 Wired Controller (Optional)Vertical Swing LouverCleanable Air FilterDry Coil Mode for Anti-Mildew Protection
PRODUCT SPECIFICATIONS
- Type: Wall-Mounted
- Cooling Capacity Btu/h: 9,000
- Heating Capacity Btu/h: 11,000
- Airflow (Min/Mas) CFM: 171/377
- Sounds Level (Min/Max) dB(a): 29/43
- Dehumidification (puts/hr): 1.7
- Unit Dimensions (WxHxD) in: 33.4 x 11.4 x 8.2
- Line Connection Size (Liquid-Gas/Suction) in: 1/4~3/8
PRODUCT SPECIFICATIONS
- Type: Wall-Mounted
- Cooling Capacity Btu/h: 9,000
- Heating Capacity Btu/h: 11,000
- Airflow (Min/Mas) CFM: 171/377
- Sounds Level (Min/Max) dB(a): 29/43
- Dehumidification (puts/hr): 1.7
- Unit Dimensions (WxHxD) in: 33.4 x 11.4 x 8.2
- Line Connection Size (Liquid-Gas/Suction) in: 1/4~3/8
PRODUCT SPECIFICATIONS- Type: Wall-Mounted
- Cooling Capacity Btu/h: 12,000
- Heating Capacity Btu/h: 13,000
- Airflow (Min/Mas) CFM: 171/400
- Sounds Level (Min/Max) dB(a): 29/45
- Dehumidification (puts/hr): 3.0
- Unit Dimensions (WxHxD) in: 33.4 x 11.4 x 8.2
- Line Connection Size (Liquid-Gas/Suction) in: 1/4~1/2
|
|
|
|
|
|
|
|
|
|
|
