Product Name :

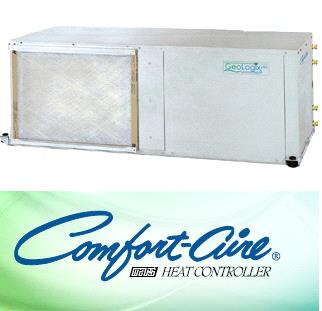

2 Ton ComfortAire Two Stage Geothermal Water Sourced Heat Pump HTD024B1C01JRN - Right Return - Downflow
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
PRODUCT SPECIFCIATIONS:
| Capacity Modulation |
Full/Part |
| Ground Water Heat Pump - COP |
4.8/5.1 |
| Ground Water Heat Pump - Cooling BtuH 59°F EWT |
28,900/22,200 |
| Ground Water Heat Pump - EER |
24.5/30.8 |
| Ground Water Heat Pump - Heating BtuH 50°F EWT |
25,700/18,600 |
| Hot Water Generator Option |
Y |
| Volts |
208/230-1-60 |
| Water Loop Heat Pump COP |
5.3/6.1 |
| Water Loop Heat Pump Cooling BtuH 86°F EWT |
25,300/19,400 |
| Water Loop Heat Pump EER |
15.9/18.3 |
| Water Loop Heat Pump Heating BtuH 68°F EWT |
30,800/22,400 |
| Shipping Weight |
276.00 |
| Shipping Width |
28.00 |
| Shipping Length |
31.25 |
| Shipping Height |
53.50 |
________________________________________________________
Comfort-Aire's HT Series Commercial Water Source Heat Pumps:
These two stage models are among the most efficient heating and cooling systems available today, with EERs as high as 29.1 and COPS as high as 4.8.
Two stage models are available in the following configurations:
HTD -Vertical downflow/counterflow design
HTH - Horizontal design
The two-stage design allows the unit to run at 67% capacity most the time to maintain a consistent temperature and humidity level. When there's a demand for greater heating/cooling (such as during temperature extremes), the unit automatically and instantly changes to 100% capacity. This part load/full load capacity significantly lowers annual operating costs while increasing comfort.
- In addition to the full load/part load operation, a variable speed blower motor adds to comfort and efficiency with a Multitude of operational modes. The blower motor automatically adapts to all applications
- The two stage heat pump system uses environmentally friendly R-410A.
- A hot water generator with built-in pump and CuNi coil are standard features that add value and efficiency.
- The HT Series is available in 2 to 6 ton capacities.
Features:
- Quiet Operation-Double isolation compressor mounting system and vibration isolation springs; insulated divider and separate compressor and air handler compartments
- Extended Operating Range-20° to 120° F makes unit suitable for virtually all applications and climates
- Two Stage Compressor-Copeland Multi-stage scroll compressor provides comfort at higher efficiencies than single stage models
- Microprocessor Controls-Includes performance monitoring system to signal a potential problem before a lockout occurs
- Durable Cabinet-G90 galvanized steel has a tough epoxy finish; drain pan is stainless steel; air coils are coated
- Easy Installation & Service-Service valves are included; three panels are easily removed, making it simple to access components
|
WARRANTY
|
Manufacturer's Warranty:
LIMITED TWELVE (12) YEAR EXPRESS WARRANTY
Heat Controller warrants all parts of the residential geothermal heat
pump including the compressor to be free from defects in workmanship
and materials for normal use and maintenance for twelve (12) years from
the date of purchase by the original consumer for the original installation.
This Express Limited Warranty applies only when the geothermal heat
pump is installed as a complete AHRI matched system (applies to spilt
system heat pump only), and only when the system is installed per Heat
Controller installation instructions and in accordance with all local, state
and national codes for normal use.
For more information on the warrranty, click the provided link.
|
