Description

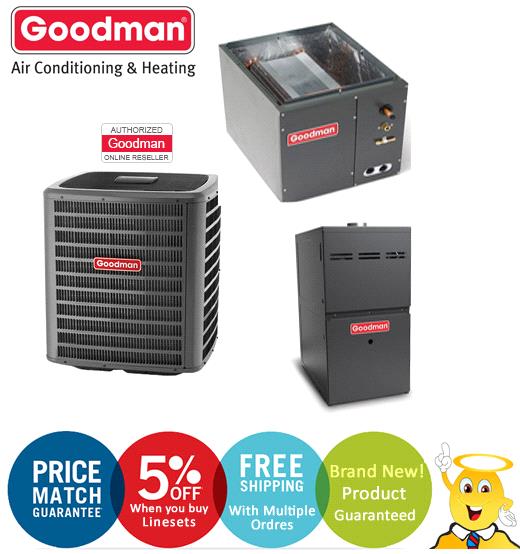

The Goodman Brand DSXC16 Air Conditioner uses the chlorine-free refrigerant R-410A and is part of our new ComfortNet family of communicating units. In addition, the DSXC16 features energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. This unit contains the two-stage, high-efficiency Copeland scroll compressor, which provides improved temperature and humidity control for the consumer who desires superb comfort and quiet operation.

Standard Features:

• R-410A chlorine-free refrigerant
• Two-Stage Copeland UltraTech scroll compressor
• High-density foam compressor sound blanket
• ComfortNet Communications System compatible
• Expanded ComfortAlert diagnostics built in
• Set-up capable with 2 low-voltage wires to outdoor unit
• Diagnostic indicator lights and storage of 6 fault codes
• Color coded terminal strip for non-communicating set-up
• High and low pressure switches
• Fully charged for 15 feet of tubing length
• Factory-installed filter dryer
• Coil and ambient temperature sensors
• Two-speed super quiet condenser fan motor
• Sweat connection service valves with easy access to gauge ports AHRI Certified; ETL Listed

The Goodman CAPF4860C6 comes from an impressive line of indoor coils that are designed for split-system air conditioning and heat pump installations. This Goodman evaporator coil resists mold through a thermoplastic, low-water-retention drain. The application of this unit is as an upflow/downflow coil and works with R-22 or R-410A refrigerant.

This Goodman coil features a painted cabinet. The tonnage of this unit (the nominal capacity range at 13 SEER) is 4 to 5 tons. Keep in mind that the Flowrater tonnage used should accommodate the higher number between the air conditioner and heat pump. The overall dimensions of this coil are 21" W x 21" D x 30" H.

• Suitable for use with R410A and R22 refrigerants
• Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
• Available with check flowrater expansion device for heat pump or cooling-only applications
• Rifled copper tubing and corrugated aluminum fin coils
• Foil-faced insulation
• High quality post-paint cabinet
• Split-seam front for easy access

The Goodman GMVC81005CN is a variable-speed gas furnace with ComfortNet compatibility. It uses a powerful, aluminized-steel dual-diameter tubular heat exchanger. It is housed in a fully-insulated heavy-gauge steel cabinet with a durable baked-enamel finish. A variable-speed ECM circulator motor operates gently and quietly to adjust to temperature demands.

This Goodman gas furnace is a two-stage, variable-speed, multi-position heater. It's compatible with both two-stage and single-stage thermostats. It uses a durable Silicon Nitride igniter to maintain a comfortable temperature in the home. It has a heating capacity input in high mode of 100,000 BTU and output of 80,000 BTU. In low mode, this unit has a heating capacity input of 70,000 BTU and an output of 56,000 BTU.

This heater comes from the GMVC8 line of Goodman gas furnaces. This collection of Goodman gas furnaces has up to 80% AFUE (annual fuel utilization efficiency) rating. Many standard furnaces feature 60% AFUE, which means that this system can contribute to significant energy savings.

This multi-position Goodman gas heater offers many installation options. It can be installed in upflow or horizontal positions. This model features a low constant fan speed to keep air circulating throughout the home and has a self-diagnosing control board.

Features

• Aluminized steel, dual-diameter tubular heat exchanger
• Two-stage gas valve operates on two-stage or single-stage thermostats
• ComfortNet™ Communications System compatible
• Efficient and quiet variable-speed circulator motor gently ramps up or down according to heating or cooling demand
• Silicon Nitride igniter designed for long igniter life
• Furnace control board with self-diagnostics, color-coded low-voltage terminals, and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
• Low constant fan speed allows homeowner to activate a very low speed, efficiently circulating air throughout the home. This setting costs as little as a 100-watt light bulb to operate.
• Quiet, two-speed induced draft blower
• Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
• Designed for multi-position installation: upflow, horizontal left or right
• Removable bottom for side- or bottom-return applications
• Coil and furnace fit flush for most installations

Description

A specially formulated super-hydrophobic (water repelling) product in a convenient aerosol package for field service. The non-conductive formula has numerous applications in the management of water on non-food, non-potable water surfaces for the HVAC/R trade; surfaces that are not exposed to ongoing abrasion (hand and foot traffic).

• Slows ice formation on refrigeration coils/cold plates

• Provides added corrosion resistance to coils

• Improves corrosion resistance to system components. Examples include circuit boards, filter-driers, flow control valves, equipment covering, etc.

• Provides added corrosion protection of solder connections on low voltage circuit boards

• Self-cleaning properties reduce rate of grime on outdoor coils

• Reduces rate of bacterial growth on non-food, non-potable water surfaces

• Improves water dispersion in condensate pans

• Many other applications!

Specification

Directions

This product must be used in accordance to the following directions by HVACR professionals only.

1. Disconnect all power to the equipment before use. Do not spray near sparks, heat or open flame. Discontinue the use of power tools during use. Do not smoke while applying product.
2. Shake well before use. Use outdoors or in a well-ventilated area. Keep area ventilated until fumes are gone. Avoid breathing of fumes during application.
3. Ensure surface is clean and mostly to fully dry before applying. After a coil cleaning, the surface needs to be blown dry with an inert gas to remove excess moisture from the surface before applying Nu-Shield.
4. From a distance of 6-12 inches, spray a light coat on the surface, but no more beyond it being visibly wet. In other words, ‘Wet It and Forget It’. Contents in the canister will cover approximately 100 square feet. Depending on ambient conditions, allow a minimum of 20 minutes for Nu-Shield to dry on surface. Ensure surface appears visually dry and fumes are gone from the area before turning on power to equipment.

Note: Product needs to be applied after each coil cleaning. For best results, especially in corrosive environments, the product should be reapplied annually.

10 Year All Parts Warranty

The Goodman GMVC81005CN qualifies for a Lifetime Heat Exchanger Limited Warranty, a 10 Year Unit Replacement Limited Warranty and a 10 Year Parts Limited Warranty.
