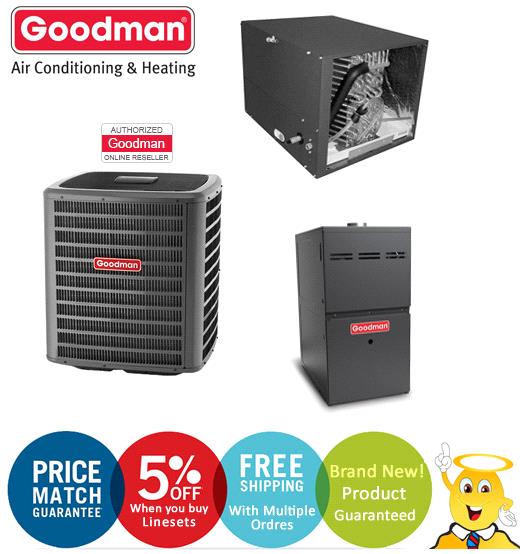

The Goodman GSX14 Air Conditioner uses the chlorine-free refrigerant R-410A and features operating sound levels that are among the lowest in the heating and cooling industry. With its 14 SEER rating, the GSX14 will help reduce energy consumption throughout the life of the system.

Standard Features:

• Energy-efficient compressor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Description

The Goodman CHPF2430B6 comes from an impressive line of indoor coils that are designed for split-system air conditioning and heat pump installations. This Goodman evaporator coil resists mold through a thermoplastic, low-water-retention drain. The application of this unit is as a horizontal A coil and works with R-22 or R-410A refrigerant.

This Goodman coil features a painted cabinet. The tonnage of this unit (the nominal capacity range at 13 SEER) is 2 to 2 1/2 tons. Keep in mind that the Flowrater tonnage used should accommodate the higher number between the air conditioner and heat pump. The overall dimensions of this coil are 21" W x 26" D x 17.5" H.

Features

• Suitable for use with R410A and R22 refrigerants
• Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
• Available with check flowrater expansion device for heat pump or cooling-only applications
• Rifled copper tubing and corrugated aluminum fin coils
• Foil-faced insulation
• High quality post-paint cabinet
• Split-seam front for easy access

Description

For both heating and combination heating/cooling systems, the Goodman GMS80804BN can be installed in various locations due to its reinforced and insulated steel cabinet with a durable baked enamel finish. The 80% efficiency rating means that 80 cents of every dollar goes into heating your home at peak levels, assisted by an advanced, patented aluminized-steel tubular heat exchanger and energy-conscious hot surface ignition system. This Goodman gas furnace has a single-stage combination redundant gas valve with quiet multi-speed blower motor. This unit has 80,000 BTU.

Note: This furnace does not meet state of California emissions laws. Please see instead our high efficiency furnaces (models GMS90, GCS90, GMV90, GCV90) which are compliant with California laws.

Features

• Corrosion-resistant, aluminized-steel tubular heat exchanger
• Energy-saving, reliable hot surface ignition system with patented adaptive learning algorithm
• Aluminized steel inshot burners
• Energy-saving PSC, multi-speed, direct drive blower motor
• Quiet, corrosion-resistant induced draft blower assembly
• Integrated furnace control with diagnostics
• Low voltage terminal blocks
• Multiple flame roll-out switches, blower door safety switch, outlet air-limit switch and pressure switch for proof of combustion air
• 40VA transformer for heating and air conditioning control service
• Combination redundant gas valve and regulator
• A rotating combustion air blower with option of venting the furnace through the top, right-hand side or left-hand side
• Completely assembled, factory run-tested
• Heavy-gauge, reinforced, fully insulated steel cabinet with durable baked-enamel finish
• Foil-face insulation lines the heat exchanger compartment
• Coil and furnace fit flush for easy installation
• Convenient left or right connection for gas and electric service
• Bottom or side air inlet
• Removable, solid-bottom block off

Description

A specially formulated super-hydrophobic (water repelling) product in a convenient aerosol package for field service. The non-conductive formula has numerous applications in the management of water on non-food, non-potable water surfaces for the HVAC/R trade; surfaces that are not exposed to ongoing abrasion (hand and foot traffic).

• Slows ice formation on refrigeration coils/cold plates

• Provides added corrosion resistance to coils

• Improves corrosion resistance to system components. Examples include circuit boards, filter-driers, flow control valves, equipment covering, etc.

• Provides added corrosion protection of solder connections on low voltage circuit boards

• Self-cleaning properties reduce rate of grime on outdoor coils

• Reduces rate of bacterial growth on non-food, non-potable water surfaces

• Improves water dispersion in condensate pans

• Many other applications!

Directions

This product must be used in accordance to the following directions by HVACR professionals only.

1. Disconnect all power to the equipment before use. Do not spray near sparks, heat or open flame. Discontinue the use of power tools during use. Do not smoke while applying product.
2. Shake well before use. Use outdoors or in a well-ventilated area. Keep area ventilated until fumes are gone. Avoid breathing of fumes during application.
3. Ensure surface is clean and mostly to fully dry before applying. After a coil cleaning, the surface needs to be blown dry with an inert gas to remove excess moisture from the surface before applying Nu-Shield.
4. From a distance of 6-12 inches, spray a light coat on the surface, but no more beyond it being visibly wet. In other words, ‘Wet It and Forget It’. Contents in the canister will cover approximately 100 square feet. Depending on ambient conditions, allow a minimum of 20 minutes for Nu-Shield to dry on surface. Ensure surface appears visually dry and fumes are gone from the area before turning on power to equipment.

Note: Product needs to be applied after each coil cleaning. For best results, especially in corrosive environments, the product should be reapplied annually.

10 Year All Parts Warranty
