Product Name :

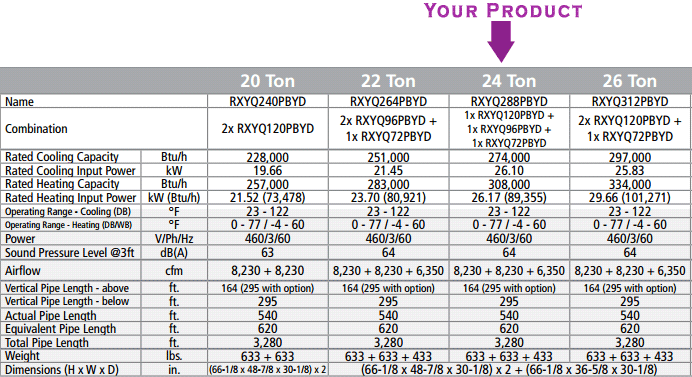

RXYQ288PBYD Daikin VRV Outdoor Unit 24 TON 430V cool and heat air conditioner condensing unit
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
Inverter Heat Pump units allow for either cooling or heating from one system
Up to 62 indoor units can be operated from a single outdoor unit using a variable-speed compressor system with 48 capacity steps
Continuous operation 0°F DB (-4°F WB) – 77°F DB (60°F WB) in heating mode and 23°F DB – 122°F DB in cooling mode
Daikin’s optimized scroll compressor designed for R-410A provides a quiet, reliable energy-efficient operation
Daikin’s management and oil-equalizing technology assures maximum reliability and flexibility to the VRV system with piping lengths of up to 540ft., for a total networked length of up to 3,280 ft. of liquid line.
Anticorrosion treatment standard on exterior metal parts and heat exchanger
Fully compatible with the complete Daikin control suite including the Intelligent Touch controller, the Intelligent Touch Manager, and the LonWorks® and BACnet® gateways
|
Daikin’s constant efforts have been devoted towards using the latest and most revolutionary technologies in the development of the VRV system for large-sized buildings. The system offers larger outdoor capacities, greater energy savings, easier installation, longer actual and total piping, and more.
- Fans and grilles
- Heat exchanger
- High efficiency compressor
- Heat transfer circuit
- Compact electrical panel
- Smooth sine wave DC Inverter
- DC fan motor
|
 |
1. Newly improved fans and grilles
A higher external static pressure has been achieved-from 0.24” to 0.32” W.G.-thanks to reduced internal pressure loss, use of the new fans and the new grilles.
New aero spiral fan and aero asymmetrical fan
The area of these new fan blades has been increased and optimized for each casing. This greatly reduces pressure loss, resulting in a higher external static pressure.
New aero spiral fan (Powerful Dual DC fan)
In the 12-Ton unit, a single fan with a diameter of 27.5" has been split into two fans with diameters of 21.25" each. Blade area has been increased by 20% to increase airflow.
Aero smooth grille
The three-dimensional, integrated, soft woven steel grilles are covered with a plastic coating that protects them from rotating elements and the possibility of fire damage.
2. Heat exchanger
The new heat exchanger contributes to a higher COP because of an increase from 7% to 10% of the effective length as well as an optimized e-Pass heat exchanger.
3. Improving the high efficiency compressor to achieve a higher COP and larger capacity
Reluctance DC scroll compressor
Daikin's unique scroll compressor minimizes heat loss, and is driven by a high efficiency motor to achieve significant energy savings.
* High thrust mechanism:
By introducing high pressure oil, the reactive force from the fixed scroll is added to the internal force, thereby reducing thrust losses. This results in improved efficiency and suppressed sound levels.
4. Heat transfer circuit
By performing sub cooling before the expansion process, the volume of refrigerant that needs to be circulated to the indoor units can be reduced without lowering the evaporation temperature. This permits the use of narrower piping.
5. Compact Electrical Panel
Has a compact casing by stacking the Inverter and control PCBs plus optimizing the internal design to suit airflow speed. This achieves lower noise and reduces the power input.
6. Smooth sine wave DC Inverter
By adoption of the Sine Wave, which smoothes the rotation of the motor, operation efficiency is dramatically improved.
7. DC fan motor
- Across entire range of models (from 6 to 30 Ton).
- Efficiency improvement by up to 40% especially at low speed.
The strongest product warranties for peace of mind
You can trust Daikin and your Daikin Dealer to provide you with the best warranty program in the industry. Our standard warranty provides a solid level of protection on all Daikin products providing peace of mind.
| Product |
Daikin Warranty
Compressor/Parts |
| 19 Series, Quaternity, LV-Series Single Split and Multi-Split |
12/12* |
| 15 Series |
10/10* |
| Sky Air Systems |
10/10* |
| VRV Systems |
10/10* |
| *Complete warranty details are available from your local dealer. To receive the parts limited warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec. |
How Long Does Warranty Coverage Last?
Registration on is not required to obtain warranty coverage, but
registration entitles the owner to the Registered Additional
Term Warranty described in the following paragraph. If the unit
is not registered, the warranty lasts for a period up to 5 YEARS
(the “Initial Term Warranty”).
If the unit is properly registered online within 60 days after the
installation date, an additional warranty (the “Registered Additi
onal Term Warranty”) is provided and lasts for as long as
the original registered owner or his or her spouse (“registered
owner”) own and reside in the home in which the unit was originally
installed, for a period up to 12 YEARS after the installation date. To register, go to www.daikincomfort.com and click
“PRODUCT Registration.” Some states and provinces do not allow
limitation of warranty coverage to registered owner, so the
above limitaO on may not apply to you. If you are a California
or Quebec resident, please refer to the “California And Quebec
Residents” section below.
Neither of these warranties continues after the unit is removed
from the location on where it was originally installed.
The replacement of a part under this warranty does not extend
the warranty period. In other words, Daikin warrants a replacement
part only for the period remaining in the applicable warranty
that commenced on the installation date.
®* Equipment was operating within Daikin AC’s recommended temperature limits.7. The above Warranty applies only when the Product remains at the site of the original installation and only to Product installed within the continental United States, Alaska, and Hawaii and only if Customer establishes by clear and convincing evidence that all of the conditions of this limited Warranty have been met.8. THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY FOR DAIKIN AC PRODUCTS, AND IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, IN LAW OR IN FACT. DAIKIN AC SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR USE OR PURPOSE OR OF NON-INFRINGEMENT, OR ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING OR OF PERFORMANCE OR USAGE OF TRADE. NO PERSON OR ENTITY IS AUTHORIZED TO BIND DAIKIN AC TO ANY OTHER WARRANTY, OBLIGATION OR LIABILITY FOR ANY DAIKIN AC PRODUCT. ACCEPTANCE, INSTALLATION, OPERATION OR USE OF THE DAIKIN AC PRODUCT FOR WHICH THIS WARRANTY IS ISSUED WILL CONSTITUTE ACCEPTANCE OF THE TERMS HEREOF.9. SOME JURISDICTIONS MAY NOT ALLOW THE EXCLUSION OR LIMITATION OF INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR OF ANY EXPRESS OR IMPLIED WARRANTIES, SO TO SUCH EXTENT THE ABOVE EXCLUSIONS MAY NOT APPLY TO CERTAIN CUSTOMERS. THIS LIMITED WARRANTY PROVIDED BY DAIKIN AC GIVES CUSTOMERS SPECIFIC LEGAL RIGHTS, AND CUSTOMERS MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION. The disclaimers of liability included in this Warranty shall remain in effect and shall continue to be enforceable in the event that any remedy herein shall fail of its essential purpose.
10. No one is authorized by Daikin AC to modify this Warranty in any respect or to create for Daikin AC any other obligation or liability in connection with the Product unless done so in a written agreement bearing the handwritten signature of the President or a Vice President of Daikin AC. Customer agrees that any purported change by Daikin AC shall be null and void unless the President or a Vice President of Daikin AC shall have expressly so agreed to such change in writing.
|
