Brand : YMGI Tri Zone Ceiling Units
hvac prices

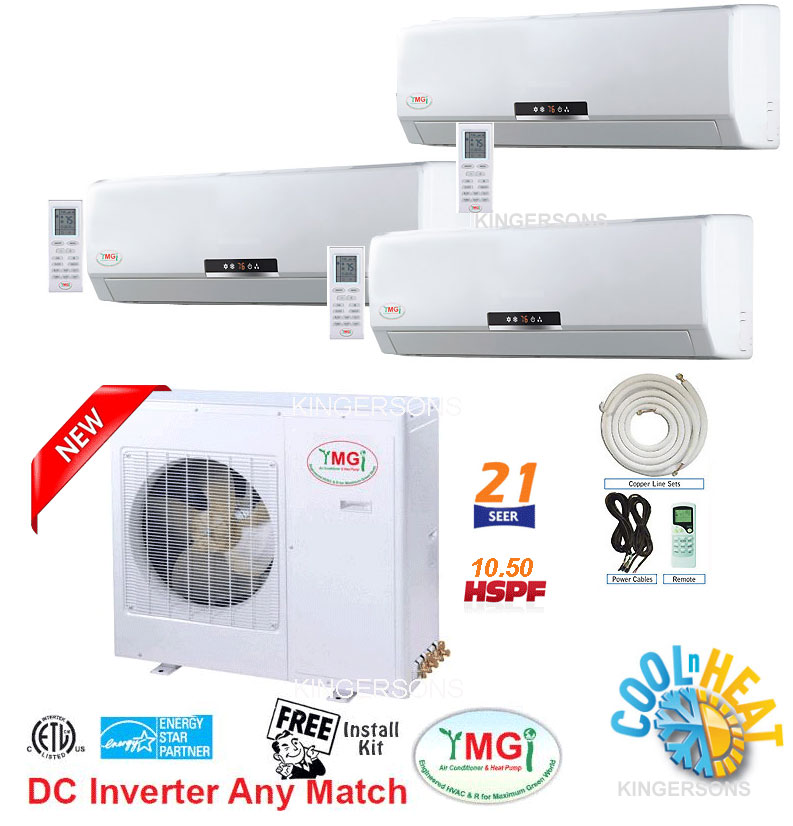

Product Name : YMGI TRI ZONE SPLIT AIR CONDITIONER 57,000 BTU WITH 9,000 2 x 24,000 BTU WALL UNIT SEER 21

Item# :
WMMS-60CH-V2B(59)4-wmms24ew-24ew-18ew
Your Price :
Choose QTY :
heat pump splits
YMGI Specifications: DC Inverter Mini Split Heat Pump-Multiple Zone-(59)4 Outdoor Units 21SEER
Model Units WMMS-60CH-V2B(59)4
Cooling Capacity Rating-Standard Comp. Speed Btu/h 39000
Min./Max. Cooling Capacity Btu/h 8871 / 40944
Heating Capacity Rating-Standard Comp. Speed Btu/h 45000
Min./Max. Heating Capacity Btu/h 8871 / 46062
Max. Allowed IDU Qty./Capacity Total # / Btu/h 5 / 60,000
EER W/W, (Btu/h)/W W/W 3.06 / 10.4
COP W/W, (Btu/h)/W W/W 3.61 / 12.33
SEER / HSPF - 21.00 / 10.20
Air Flow Volume CFM 4531
Sound Pressure / Power Level dB(A) 61 / 71
Power Supply V/Ph/Hz 208-230/1/60
Power Cable Conductor Minimum Size AWG AWG10, Following NEC
Recommended HVAC Type Circuit Breaker Size Amp. 40
Power Input Cooling / Heating / Rated KW 3.65 / 3.74 / 4.00
Current Input Cooling / Heating / Rated A 16.50 / 16.00 / -
Compressor Type, Model - Inverter Rotarty, LD QXAS- D32zX090A
Compressor Capacity / Input W 12300 / 4150
Compressor RLA / LRA A 17.8 / -
Compressor Thermal Protector - Exterior 1NT11L—6233
Compressor Crankcase Heater W 40
Compressor Oil Type, Charge -, OZs FV50S, 35.2
De-Ice/Snow Heater Power Input W 96
De-Ice/Snow Heater Current A 0.4
Fan Type / Qty. / Diameter-Height - Axial-flow / 1 /D570-
Motor Model / Type - SWZ150B, DC
Motor Insulation Class, Safe Class - E, IPX4
Fan Motor Drive Type, Speed - Director Drive, 880
Fan Motor Power Output / Input W 170 / 240
Motor Full Load Amp (FLA) A 0.82
Condenser Materials - Aluminum Fin-Copper Tube
Permissible Operating Pressure for the Discharge/Suction Sides PSI 600 / 360
High/Low Pressure Overload Protector PSI 580 / -
Cooling Operation  Ambient Temperature Range F 0 ~ 118
Heating Operation  Ambient Temperature Range F -4 ~ 75
Defrosting Method of Heat Pump in
Low Temperature Ambient
-- Automatic Reversing, Fan
Cycling
Pressure Maitenance Method in Low
Temperature Cooling
-- Automatic Fan Speed
Control, Cycling
Overload Protector - Current+Temperature
Designed for Climate Type, Moisture Protection - T1, IPX4
Refrigerant, Charge LBs R410A, 8.0
Metering Device - Electronic expansion valve
Flare/Nut Valve Size-Liquid Inch 1/4, 1/4, 1/4, 1/4, 1/4
Flare/Nut Valve Size-Gas Inch 3/8, 3/8, 3/8, 3/8, 3/8
Min. Allowed Copper Line Length/Unit Ft. 15
Max. Allowed Copper Line Length-
outdoor to last indoor unit
Ft. 80
Max. Elevation Difference Allowed-
outdoor unit is below all indoor units
Ft. 50, Oil Trap is Not Needed
Max. Elevation Difference Allowed-
outdoor unit is above indoor units
Ft. 50, Oil Trap is Suggested
Every 25'
Max. Copper Line Length (all together) Ft. 246
No Additional Refrigerant Needs to be Added, If Copper Line Length Total is Less Than Ft. 150
Refrigerant Charge Rate, If Needed, by
Weight/Ft. of Extra Liquid Line Length
Ozs/Ft. 2.32
Dimension of Unit Outline (W×D×H) Inch 42.8x17.3x43.4
Dimension of Package (W×D×H) Inch 45.6x19.4x48.6
Weight-Net / Gross LBs 198 / 216
Loading Quantity (20’/40GP/40HQ) Units 22 / 48 / 86




Description

(59)2 DC Inverter Multiple Zone-Indoor Units-Wall Mount EW, 24K Btu/h, 208-230/1/60



ItemsUnit / ConditionsWMMS-24EW-V2B(59)2
Power SupplyVoltage/Ph/Hz208-230/1/60
Allowed Voltage Range187-253V
Cooling Capacity (Btu/h)High/Standard/Low26500/22800/9600
Heating Capacity (Btu/h)Max./Min.28500/9800
ID 70/60, OD 47/43F27400
ID 70/60, OD 17/15F23600
ID 70/60, OD 17/5F20600
SEERBtu/h.W18-16
HSPFBtu/h.W10.2-8.2
Duhumidifying CapacityPints/Hr.5.28
Air Flow (CFM)High/Medium/Low470/410/350
Air-throw (Ft.)Horizontal Installation35-30 Upon Mounting Height/Speed/Temp.
External Static PressureWater In.0
Sound LevelPressure dB(A) (H/M/L)48/46/44
Power dB(A) (H/M/L)58/56/54
Fan MotorModelFN25B-PG
ShaftSingle
Speed (RMP, H/M/L)1150/1000/850
Output (W)35
RLA (AMP)0.45
Capacitor (uF)2.5
Fan WheelType-PieceCross Flow-1
Diameter x Width (In.)φ3.9 x 30
Swing/Step MotorModelMP35XX
Piece2
Output (W)2
Input Power of Ele. HeaterType-WNA
Electrical Protection FusePCB / TransformerT3.15A 250V / 0.2A
Evaporator CoilTypeAlu. Fin/Inner Grooved Copper Tube
ColorBlue
Copper Line ConnectionsSealed by Dry NitrogenYes
Flare/Nut-Liuqid + Gas1/4? + 5/8?
Drain Hose ConnectionOD (In.)0.67
Condensate PumpInstalled-Lift (In.)NA
FilterType-FeatureStandard-Washable
Qty.2
Clean Coil SurfaceAnti-Mildew FunctionYes
Pre-heating FunctionAnti-Cold BlowingYes
Memory of Previous Set-upsPower is Lost/ResumedYes
Auto-Restart FunctionIf Power is ResumedYes
Unit DimensionsNet WxHxD (In.)39.7 x 12.4 x 7.9
Package WxHxD (In.)42.2 x 15.6 x 12.3
Unit WeightNet (LBs)35.2
Packaged (LBs)46.3
Loading Capacity20’/40’/40’HQ200/410/450


Description

59)2 DC Inverter Multiple Zone-Indoor Units-Wall Mount EW, 18K Btu/h, 208-230/1/60

ItemsUnit / ConditionsWMMS-18EW -V2B(59)2
Power SupplyVoltage/Ph/Hz208-230/1/60
Allowed Voltage Range187-253V
Cooling Capacity (Btu/h)High/Standard/Low21500/17000/6800
Heating Capacity (Btu/h)Max./Min.22500/9500
ID 70/60, OD 47/43F18700
ID 70/60, OD 17/15F16600
ID 70/60, OD 17/5F13800
SEERBtu/h.W18-16
HSPFBtu/h.W10.2-8.2
Duhumidifying CapacityPints/Hr.3.8
Air Flow (CFM)High/Medium/Low460/380/320
Air-throw (Ft.)Horizontal Installation35-30 Upon Mounting Height/Speed/Temp.
External Static PressureWater In.0
Sound LevelPressure dB(A) (H/M/L)45/42/40
Power dB(A) (H/M/L)55/52/50
Fan MotorModelFN20W-PG
ShaftSingle
Speed (RMP, H/M/L)1200/1050/900
Output (W)20
RLA (AMP)0.25
Capacitor (uF)1.5
Fan WheelType-PieceCross Flow-1
Diameter x Width (In.)φ3.9 x 28
Swing/Step MotorModelMP28VB
Piece2
Output (W)2
Input Power of Ele. HeaterType-WNA
Electrical Protection FusePCB / TransformerT3.15A 250V / 0.2A
Evaporator CoilTypeAlu. Fin/Inner Grooved Copper Tube
ColorBlue
Copper Line ConnectionsSealed by Dry NitrogenYes
Flare/Nut-Liuqid + Gas1/4? + 1/2?
Drain Hose ConnectionOD (In.)0.67
Condensate PumpInstalled-Lift (In.)NA
FilterType-FeatureStandard-Washable
Qty.2
Clean Coil SurfaceAnti-Mildew FunctionYes
Pre-heating FunctionAnti-Cold BlowingYes
Memory of Previous Set-upsPower is Lost/ResumedYes
Auto-Restart FunctionIf Power is ResumedYes
Unit DimensionsNet WxHxD (In.)37 x 11.7 x 7.9
Package WxHxD (In.)39.8 x 15.0 x 11.2
Unit WeightNet (LBs)28.6
Packaged (LBs)37.4
Loading Capacity20’/40’/40’HQ207/431/488






Warranty From The Manufacturer - Only applies to units installed by licesensed HVAC Or Air Conditioning company.

  • 1 years parts
  • 5 years compressor

COMPLETE DETAILS:

If you received a product that is "Dead On Arrival" we will replace it with brand new unit. You have 15 days from the date of delivery to notify us of the same.

Please make sure that you have an invoice from the licensed HVAC (or air conditioning company) with our model number AND serial number to receive any warranty. Replacement parts will be shipped and credit will be given when the part is returned to supplier. You will not receive credit for replacement units or warranty parts without proper documentation. Proper documents include an invoice from us and an invoice from a licensed installer. Our invoice will be emailed to you with the tracking number that you can print and save for future reference.



NO LABOR. THESE LIMITED WARRANTIES DO NOT INCLUDE LABOR or any other costs incurred for service, maintenance, repair, removing, replacing, installing, complying with local building and electric codes, shipping or handling, or replacement of the System, compressors or any other parts. For items that are designed to be maintained or replaced by the owner, the owner is solely responsible for all labor and other costs of maintaining, installing, replacing, disconnecting or dismantling the System and parts (such as filters or belts) in connection with owner-required maintenance. Air filter cleaning and/or replacement for each applicable indoor unit are owner-required maintenance, and labor for this procedure is not covered under warranty. Please consult the applicable technical documentation for air filter cleaning and other maintenance procedures.

D. Proper Installation. This Limited Warranty applies only to Systems that are installed by contractors who are licensed for HVAC installation under applicable local and state law, and who install the Systems in accordance with (i) all applicable building codes and permits; (ii) YMGI’s installation and operation instructions; and (iii) good trade practices.

BEFORE REQUESTING SERVICE, please review the applicable technical documentation to insure proper installation and correct customer control adjustment for the System. If the problem persists, please arrange for warranty service.

1. TO OBTAIN WARRANTY PARTS SERVICE:

(a) Contact the licensed contractor who installed the System or the nearest licensed contractor, dealer or distributor of any defect within the applicable warranty time period.

(b) Proof of the installation date by a licensed contractor is required when requesting warranty service. Present the sales receipt, building permit or other document which establishes proof and date of installation. Otherwise, this Limited Warranty shall be deemed to begin one hundred twenty (120) days after the date of manufacture stamped on the System. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF COVERAGE UNDER THIS LIMITED WARRANTY. However, please return the Owner Registration Card so that YMGI can contact you if a question of safety arises.

(c) This Limited Warranty applies only while the System remains at the site of the original installation and only to locations within the continental United States, Alaska and Hawaii.

2. THIS LIMITED WARRANTY DOES NOT COVER: property damages, malfunction or failure of the System, or personal injury caused by or resulting from: (a) accident, abuse, negligence or misuse; (b) operating the System in a corrosive or wet environment containing chlorine, fluorine or any other hazardous chemicals; (c) installation, alteration, repair or service by anyone other than a licensed contractor or other than pursuant to the manufacturer’s instructions; (d) improper matching of System components; (e) improper sizing of the System; (f) improper or deferred maintenance contrary to the manufacturer’s instructions; (g) physical abuse to or misuse of the System (including failure to perform any maintenance as described in the Operation Manual such as air filter cleaning, or any System damaged by excessive physical or electrical stress); (h) Systems that have had a serial number or any part thereof altered, defaced or removed; (i) System used in any manner contrary to the

Operation Manual; (j) freight damage; or (k) damage caused by force majeure or other factors such as power surge damage caused by lightning and fluctuations in or interruptions of electrical power.

3. THIS LIMITED WARRANTY ALSO EXCLUDES: (a) SERVICE CALLS WHERE NO DEFECT IN THE SYSTEM COVERED UNDER THIS WARRANTY IS FOUND; (b) System installation or set-ups; (c) adjustments of user controls; or (d) Systems purchased or installed outside the continental United States, Alaska and Hawaii. Consult the operating instructions for information regarding user controls.

4. This Limited Warranty shall not be enlarged, extended or affected by, and no obligation or liability shall arise or grow out of, YMGI providing, directly or indirectly, any technical advice, information and/or service to Owner in connection with the System.

5. EXCEPT AS OTHERWISE PROVIDED IN THIS LIMITED WARRANTY, YMGI MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SYSTEM. YMGI DISCLAIMS AND EXCLUDES ALL WARRANTIES NOT EXPRESSLY PROVIDED HEREIN AND ALL REMEDIES WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE. NO ONE IS AUTHORIZED TO CHANGE THIS LIMITED WARRANTY IN ANY RESPECT OR TO CREATE ANY OTHER OBLIGATION OR LIABILITY FOR YMGI IN CONNECTION WITH THE SYSTEM. YMGI DISCLAIMS ALL LIABILITY FOR THE ACTS, OMISSIONS AND CONDUCT OF ALL THIRD PARTIES (including, without limitation, the installing contractor) IN CONNECTION WITH OR RELATED TO THE SYSTEM.

6. UNDER NO CIRCUMSTANCES SHALL YMGI BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, SYSTEM FAILURE, IMPAIRMENT OF OTHER GOODS, COSTS OF REMOVAL AND REINSTALLATION OF THE SYSTEM, LOSS OF USE, INJURY TO PERSONS OR PROPERTY ARISING OUT OR RELATED TO THE SYSTEM WHETHER BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, TORT OR OTHERWISE, EVEN IF YMGI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. IN NO EVENT SHALL YMGI’S LIABILITY EXCEED THE ACTUAL PURCHASE PRICE OF THE SYSTEM WITH RESPECT TO WHICH ANY CLAIM IS MADE.

7. Some states do not allow limitations on warranties or exclusions or limitation of damages, so the above limitations or exclusions may not apply.

8. This Limited Warranty gives the owner specific legal rights and the owner may also have other rights that vary from state to state.

9. This Limited Warranty is valid only in the continental United States, Alaska and Hawaii, and it is not transferable.
