Performance:
Indoor Unit Model No: FTXN12KEVJU
Outdoor Unit Model No: RXN12KEVJU
Cooling Capacity (Btu/hr): 12,000
Sensible Capacity (Btu/hr): 8240
Max / Min Cooling Capacity (Btu/hr / kW): 12,000 / 4,400
Cooling Input Power (kW): 1.21
SEER: 18
Heating Capacity (Btu/hr): 13,500
Max / Min Heating Capacity (Btu/hr / kW): 16,400 / 4,400
Heating Input Power (kW): 1.22
Heating COP (Btu/hr / Btu/hr): 2.9
HSPF: 8.5
Indoor Unit Type: Wall Mounted
Condensing Unit Type: Std SEER Heat Pump
Rated Cooling Conditions - Indoor: 80°F DB/67°F WB
Rated Cooling Conditions - Outdoor: 95°F DB/75°F WB
Rated Heating Conditions - Indoor: 70°F DB/60°F WB
Rated Heating Conditions - Outdoor: 47°F DB/43°F WB
Rated Piping Length 25'
Rated Height Separation 0'
Indoor Unit Details:
Power Supply (V/Hz/Ph:) 208-230/60/1ph
Power Supply Connections: L1, L2, Ground
Dimensions (H x W x D): 11-1/8 x 30-1/4 x 7-3/4
Net Weight (lbs): 16
Airflow Rate (CFM wet coil) 357/293/226/201
Gas Pipe Connection (inch): 3/8
Liquid Pipe Connection (inch): 1/4
Condensate Connection (inch): 5/8
Sound Pressure Level (dBA): 42
Sound Power Level (dBA): 58
Static Pressure Rated / Max (inWg) 0 / 00
Condensing Unit Details:
Power Supply (V/Hz/Ph): 208-230/60/1ph
Power Supply Connections: L1, L2, Ground
Min. Circuit Amps MCA (A): 7
Max. Fusible Amps MFA (A): 15
Rated Load Amps RLA (A): 6.1
Dimensions (H x W x D): 21-11/16 x 25-15/16 x 10-3/4
Net Weight (lbs): 68
Compressor Type: Inverter
Airflow Rate (CFM): 921
Gas Pipe Connection (inch): 3/8
Liquid Pipe Connection (inch): 1/4
Sound Pressure Level (dBA): 50
Sound Power Level (dBA): 64
System Details:
Refrigerant Type: R-410A
Holding Refrigerant Charge (lbs): 2.2
Additional Charge (oz/ft): 0.22
Pre-charge Piping (Length ft): 33 ft
Max. Pipe Length (Total ft): 65.6ft
Max. Pipe Length (Vertical ft): 49.2ft
Cooling Operation Range (°F): 14 - 115
Cooling Range w/Baffle (°F): 0 - 115
Heating Operation Range (°F): 5 - 77
Heating Range w/Baffle (°F): 0 - 77
Warranty:
Parts: 2 Years
Compressor: 6 Years:
Labor: None
Description:

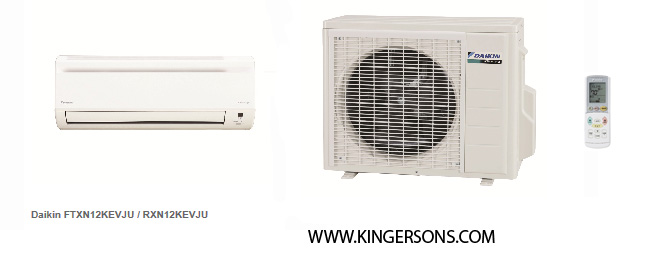

12,000 BTU 1 Ton 18.0 SEER Ductless Mini Split Air Conditioner with Heat Pump. Offers a space saving design, quiet operation and an inverter "variable speed" compressor. Instead of noisy compressors and large ductwork, Daikin uses a small, easily hidden outdoor unit connected to a wall mounted indoor via a pair of copper piping to heat and cool your room or zone. These lines open into a small three-inch opening through a wall or ceiling. Its streamlined, wall-mounted indoor units and compact outdoor units blend in discreetly with any home design and run quietly, too. Whether you're enhancing a single room or adding on an entire wing, the system's space-saving, modular design is ideal for set-apart areas like a garage office or nursery.
Features:
•Quick and easy duct-free installation
•Outstanding heating performance down to 0° F with the optional wind baffle
•Precision temperature control for individual rooms
•Space-saving design
•Quiet operation
•Inverter "variable speed" compressor
•Fully optimized for R410A refrigerant, recognized as the future industry standard
•Offers world-renowned Daikin technician support and customer service
•Wide Angle Louvers
•Vertical Auto Swing (up and down)
•Comfortable Mode
•Comfort Control
•Indoor Unit Quiet Operation
•Automatic Operation
•Program Dry Function
•Auto Fan Speed
•Hot Start
•Healthy and Clean
•Mold Proof Air Filter
•Titanium Apatite Photocatalytic
•Air Purifying Function
•Wipe clean Flat Panel
•Lifestyle
•Econo Mode
•Powerful Operation
•Remote Controller with backlit display
•LCD Wireless Remote Control
•Indoor Unit On/Off Timer
•Timers
•24 Hour On/Off Timer
•Night Set Mode
•Worry Free
•Auto Restart after Power Failure
•Self Diagnosis with Digital Display
•Anticorrosion Treatment of Outdoor Heat Exchanger Fin
