Product Name :
CSS22NKU CUS22NKU Panasonic 24200 Cool only Wall Mounted Ductless Single Zone System
|
|
|
|
|
|
Item# :
|
CSS22NKU CUS22NKU
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|

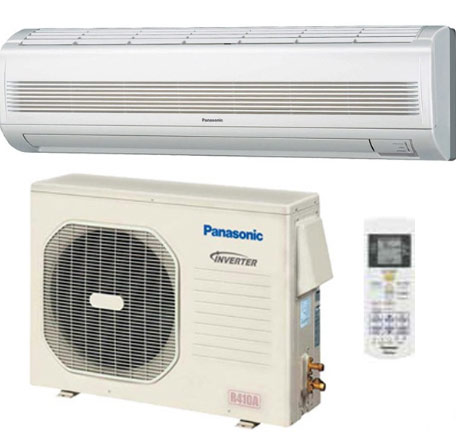

Panasonic S22NKU Cooling Only Wall Mounted Ductless Mini Split System - 24,200 BTU, Includes (1) CU-S22NKU-1 Outdoor Condenser and (1) CS-S22NKU-1 Wall Mounted Indoor Unit with Remote Control
| Panasonic CU-S22NKU Specifications: |
| Rated Capacity, (BTU): |
24200 |
| Cooling Capacity, (BTU): |
24200 |
| Cooling Range, (BTU): |
4000 - 24200 |
| Cooling Temperature Range, Dry Bulb (F): |
0 - 115 |
| Moisture Removal, (Pints/Hr): |
4.89 |
| SEER: |
17 |
| EER: |
8.9 |
| Power Supply, (V, Phase, Hz): |
230 / 208, 1, 60 |
| Cooling Running Amperage: |
12.1 |
| Cooling Power Input, (W): |
2460 |
| Fuse Size, (A): |
20 |
| Controls: |
Microprocessor |
| Low Ambient Control: |
No |
| Fan Speeds: |
Hi / Med / Lo + Auto |
| Timer: |
1 Hr OFF and 24 Hour Program |
| Filter: |
Washable |
| Refrigerant: |
R-410A |
| Refrigerant Control: |
Electric Expansion Valve |
| Operating Sound, (dB): |
55 |
| Line Set Type: |
Flare |
| Discharge Diameter, (in): |
1/4 |
| Suction Diameter, (in): |
5/8 |
| Max Pipe Length, (Ft): |
132 |
| Number of Connectable Units: |
1 |
| Height, (in): |
29 1/8 |
| Width, (in): |
35 7/16 |
| Length, (in): |
12 19/32 |
| Weight, (lbs): |
119 |
| Parts Warranty: |
5 Years |
| Panasonic CS-S22NKU-1 Specifications: |
| Rated Capacity, (BTU): |
24200 |
| Cooling Capacity, (BTU): |
24200 |
| Cooling Range, (BTU): |
4000 - 24200 |
| Cooling Temperature Range, Dry Bulb (F): |
67 - 95 |
| Cooling Temperature Range, Wet Bulb (F): |
57 - 71 |
| Moisture Removal, (Pints/Hr): |
4.89 |
| Dry Air Flow, (CFM): |
659 / 541 / 494 |
| SEER: |
17 |
| EER: |
8.9 |
| Power Supply, (V, Phase, Hz): |
230 / 208, 1, 60 |
| Cooling Running Amperage: |
12.1 |
| Cooling Power Input, (W): |
2460 |
| Fuse Size, (A): |
20 |
| Controls: |
Microprocessor |
| Low Ambient Control: |
No |
| Wireless Remote: |
Included |
| Fan Speeds: |
Hi / Med / Lo + Auto |
| Timer: |
1 Hr OFF and 24 Hour Program |
| Filter: |
Washable |
| Refrigerant: |
R-410A |
| Refrigerant Control: |
Electric Expansion Valve |
| Operating Sound, (dB): |
47 / 44 / 41 / 30 |
| Line Set Type: |
Flare |
| Discharge Diameter, (in): |
1/4 |
| Suction Diameter, (in): |
5/8 |
| Max Pipe Length, (Ft): |
132 |
| Height, (in): |
11.71875 |
| Width, (in): |
41.9375 |
| Length, (in): |
8.59375 |
| Weight, (lbs): |
26.5 |
| Parts Warranty: |
5 Years |
Panasonic S22NKU Cooling Only Wall Mounted Ductless Mini Split System - 24,200 BTU
Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.
The S22NKU Mini-Split air conditioner system is a fine example of Panasonic's engineering aptitude. This 24,200 system is guaranteed to meet any need a customer may have. The efficiency offered by this system is incredibly high, allowing anyone to save money on energy bills. The indoor units look great in any home, a sleek and stylish addition to any living space. The outdoor units represent Panasonic's pinnacle in engineering skill, combining high efficiency and operating range with a low footprint. The Panasonic S22NKU Wall Mounted Mini Split System is an incredible addition to new or existing construction.
Panasonic S22NKU Wall Mounted Mini Split System Features:
- 24,200 BTU Capacity
- Panasonic Engineering Quality and Experience
- Wall Mounted
- Environmentally Safe R-410A Refrigerant
- Meets a Wide Variety of Air Quality Regulations
Panasonic S22NKU Wall Mounted Mini Split System Contents:
- (1) CU-S22NKU-1 Outdoor Condenser
- (1) CS-S22NKU-1 Wall Mounted Indoor Unit with Remote Control
Panasonic S22NKU Wall Mounted Mini Split System Warranty Information:
- Parts Warranty: 5 years
- Compressor Warranty: 7 years
Note:
To complete the Panasonic S22NKU Wall Mounted Mini Split System, consider adding the following accessories that are required to complete every mini split system installation to your order:
- Line Set - efficiently double insulated tubing that transfers refrigerant between indoor and outdoor units
- Drain Tubing - a tube that drains condensate from the indoor unit to the drain system or outside
- Connecting Wire - provides power from an Outdoor unit to the indoor Units
- Disconnect Box & Electrical Whip Kit - provides power for an Outdoor Unit
- Condenser Plastic Pad (optional) - designed as a mounting base for an outdoor units
- Wall Bracket (optional) - in case you need to mount an outdoor unit on the wall
By adding the required accessories to the Panasonic S22NKU Wall Mounted Mini Split System you are receiving a complete solution completely ready for installation, so your contractor does not need to purchase required Panasonic Accessories to finish the installation.
