Product Name :
Daikin 12,000 BTU Ductless Wall Mounted Heat Pump Air Handler SILVER FTXR12TVJUS
|
|
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|

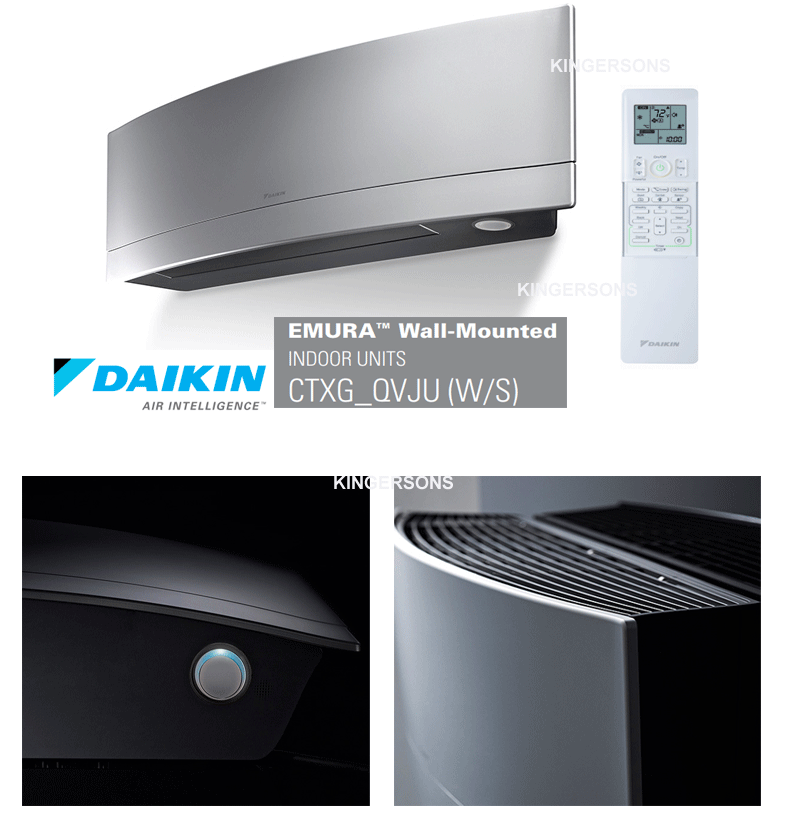

The Emura Indoor Wall Unit is now available for both single and multi-zone applications. The new FTXR12TVJUW features a 12,000 BTU cooling capacity and a 13,500 BTU heat pump. With operating ranges from 50°F - 115°F in the cooling mode and with some adjustments it offers low ambient cooling down to 14°F. With the addition of an air direction adjustment grille (KPW937E4, sold separately), it will operate in the cooling mode down to -4°F. In the heating mode, this unit can be used in many areas of the country with an operating range of 5°F - 65°F. With these operating ranges, this system becomes a year round viable option for many areas in the country. The new Emura has a sleek, newly designed look versus other Daikin wall units currently available in the US. While Emura has been available in the UK for several years, and as a multi-zone indoor unit in the US, Daikin is now offering it for use in both single and multi-zone applications. The Emura wall unit is a beautiful addition to any space. The sleek European design of this wall unit features a curved and tapered front design. Not only has Daikin redesigned the look of the indoor wall unit, they have incorporated many technological advances into the unit! Its high end designer look is available in either Matte White (FTXR12TVJUW) or Silver (FTXR12TVJUS). An infrared wireless remote is included with this unit for easy chair operation! Additionally, a wired wall controller, BRC944B2-A08 is also available. With the optional wireless interface, BRP072A43 adapter (sold separately), the Emura line of indoor units can be controlled from anywhere in the world with your phone or table. Simply install the adapter into the dedicated slot inside the unit, download the Daikin Comfort Control App and you are in control of your system from anywhere! It is nice to know that your space will be comfortable when you arrive home while not wasting energy while you are away. Of course the app also works from your couch! The Comfort Control App is available for use with either iOS or Android devices. The Emura also features intelligent eye technology. The intelligent eye diverts air flow away from the people in the room so air, cold or warm, will not be blown directly on the occupants. For example, if the unit senses people to the right of the unit, the air flow will be directed to the left. Additionally, it can also tell if the room is unoccupied - if there is no movement in the room for 20 minutes, it will automatically set back. But don't worry - it can also tell if you are just dozing on the couch and it will not go into auto set back mode, so you will not get over-chilled or over-heated! Once someone enters the room or it senses movement, it will return to the original set point. The Daikin Emura combines both vertical and horizontal auto-swing to create even air distribution throughout the entire space - even the corners with 3-D airflow This also helps eliminate stratification. Additionally, when in Comfort Mode, the flap positions itself horizontally to prevent cold air from being blown onto the occupants when cooling and turns vertically to drive the warm air towards the floor when heating. A Multi-Monitor Lamp hidden on the bottom of the unit changes color depending on the mode of operation your unit is in. It is an easy way to see what mode your system is operating. The light can be dimmed or shut off completely. The list of standard features for the Emura wall unit is all-encompassing: - Quick and easy duct-free installation
- Wireless Remote Control (included)
- WiFi compatible with BRP072A43 adapter (sold separately)
- 2-Area Intelligent Eye - can be enabled or disabled
- Power-airflow dual flaps
- Wide-angle louvers (vertical blades)
- Auto-swing (up and down as well as left to right)
- 3-D Airflow - includes vertical vane movement only, horizontal vane movement only or combined vertical and horizontal vane movement - all controllable by the remote - no need for manual adjustments
- Comfort Airflow - horizontal flap position in the cooling mode to prevent direct airflow onto the body and vertical flap position directed downward to direct warm air to the floor
- 5 fan speeds plus Quiet and Auto
- Quiet operation
- Inverter "variable speed" compressor
- Automatic Operation
- Program Dry Function
- Auto Fan Speed
- Hot Start
- Wipe Clean Flat Panel
- 24 Hour On/Off Timer
- Night Set Mode
- Auto Restart after Power Failure
- Self Diagnosis
- Right or Left Side Drain
This Emura wall unit also works in combination with the Daikin Multi-Zone outdoor units. So, whether you're enhancing a single room or adding on an entire wing, the system's space-saving, modular design is ideal for set-apart areas like a garage office or nursery. The standard heating and cooling operating range noted above for the single zone system usage varies depending on the outdoor unit you choose. - When used with the Aurora MXL 2 and 3-port units, the heating range is from -13°F - 60°F while the cooling range is from 14°F - 115°F.
- When used with the MXS 2, 3 or 4-port units, the heating range is between 5°F and 60°F while the cooling range is from 14°F - 115°F.
-
- Indoor Unit Type:
- Wall Mount
-
- Cooling BTUs:
- 12000
-
- Includes Heat Pump:
- Yes
-
- Heat Pump BTUs:
- 13500
-
- CFMs:
- 335 / 219 / 169 / 131 (H / M / L / SL)
-
- Fan Speeds:
- 5
-
- Room Size Coverage:
- Medium 300 - 525 Sq. Ft.
-
- Min. Indoor Noise Level (dBA):
- 20
-
- Indoor Noise Level (dBA):
- 45 / 34 / 26 / 20 (H / M / L / SL)
-
- Control Type:
- Hand Held Remote
-
- Wired Thermostat Optional:
- Yes
-
- Line Set Liquid Line:
- 1/4"
-
- Line Set Suction Line:
- 3/8"
-
- Width (in.):
- 39.313
-
- Depth (in.):
- 8.375
-
- Height (in.):
- 11.938
-
- Net Weight (lbs.):
- 27
-
- Parts Warranty:
- 12 Years
-
- Labor Warranty:
- None
