| Name | GREE VIR09HP230V1AO - Vireo 9,000 BTU Wall Mounted Inverter Heat Pump Outdoor Unit |
|---|
| Brand | GREE |
|---|
| Product SKU | VIR09HP230V1AO |
|---|
| Manufacturer Product Number | VIR09HP230V1AO |
|---|
| SKU - PIM Number | 1414406819049 |
|---|
| Item ID | 359818 |
|---|
| UPC | 813919020416 |
|---|
| Unit of Measure | EACH |
|---|
| Weight | 78.3 Pound (lb.) |
|---|
| Length | 12.6 Inches (in) |
|---|
| Width | 21.3 Inches (in) |
|---|
| Height | 33.4 Inches (in) |
|---|
| Hazardous Material | No |
|---|
| EPA Cert Required | No |
|---|
| Country of Origin | CHN |
|---|
| Tier | Vireo |
|---|
| Equipment Type | Heat Pump |
|---|
| Tonnage | 3/4 |
|---|
| SEER | 23.0 |
|---|
| Refrigerant | R-410a |
|---|
| Cooling Capacity | 9000 |
|---|
| BTU Output | 9000 |
|---|
| Voltage | 208-230 VAC |
|---|
| Phase | Single |
|---|
| Cycle/Hertz | 60 |
|---|
| Minimum Circuit Amps | 9 |
|---|
| Maximum Fuse Size | 15 |
|---|
| Suction Line Size | 3/8" |
|---|
| Liquid Line Size | 1/4" |
|---|
| Color | White |
|---|
| Inverter | 1 |
|---|
| Sound Level (dBA) | 53 |
|---|
| Warranty Offered | 5/7 All parts are warranted for a period of five (5) years to the original registered end-user with proof of proper installation. The compressor is warranted for a period of seven (7) years to the original registered end-user with proof of proper installation |
|---|
Product Features
Inverter Technology
The VIR09HP230V1AO outdoor condenser includes Gree's G-10 Inverter technology to improve comfort and efficiency. This built-in inverter drives the compressor and allows it to adjust output to the heating and cooling demands of the conditioned space, ensuring a more stable, consistent temperature and comfort level. This technology will also remove moisture, reduce short-cycling, and improve the overall efficiency of your system.
Corrosion Resistant Coil
Gree applies a gold fin coating to the heat exchanger of the VIR09HP230V1AO, which results in improved resistance to common causes of corrosion. This ensures that your unit runs consistently and helps to extend the life of your system.
Intelligent Defrost
The VIR09HP230V1A has a unique defrost technology that helps to maintain room comfort and save money on energy by cutting out unnecessary defrost cycles. While in heating mode, frost buildup will gather until detected and will automatically engage the defrost cycle. Once the frost has been removed, indoor and outdoor fans will resume normal operation.
Minimalistic Design
The VIR09HP230V1AH features a sleek, minimalist design, allowing it to blend in with almost any living space. The design includes an easy to read display and indicator lights providing information on room and operation settings.
Operating Modes
With multiple operating modes and four-speed fan, the Gree Vireo is perfect for any situation. A built-in timer allows the indoor unit to be turned on and off at preset times. While Sleep and Quiet modes will adjust the unit accordingly to operate more efficiently while you sleep and operate with a lower noise level, respectively. Additionally the Vireo features an Energy Savings mode, allowing the unit to select the most optimal operating settings, saving you money on energy costs.
I Feel Mode
The Gree Vireo uses 'I Feel Mode' to sense room temperature from the remote control closest to the user in the room, rather than the unit itself. This gives the unit a more accurate reading, allowing it to adjust temperature and airflow to provide maximum personal comfort.
Cold Blow Protection
When your VIR09HP230V1A system kicks on in heating mode, you won't have to suffer through those first few minutes of cold air being blown through your home. Instead, Gree's Vireo System units are designed to monitor the air being discharged and delay the indoor fan from running until the coil has warmed up to prevent nasty wind chills.
Wireless Control Center
Every Gree Vireo indoor unit comes with a multi-function wireless remote control. With an easy to read LCD display, the remote gives complete control of the indoor unit's operations. Operating mode, temperature, fan speed, airflow, and a number of other settings can be changed at the push of a button.
Product Includes

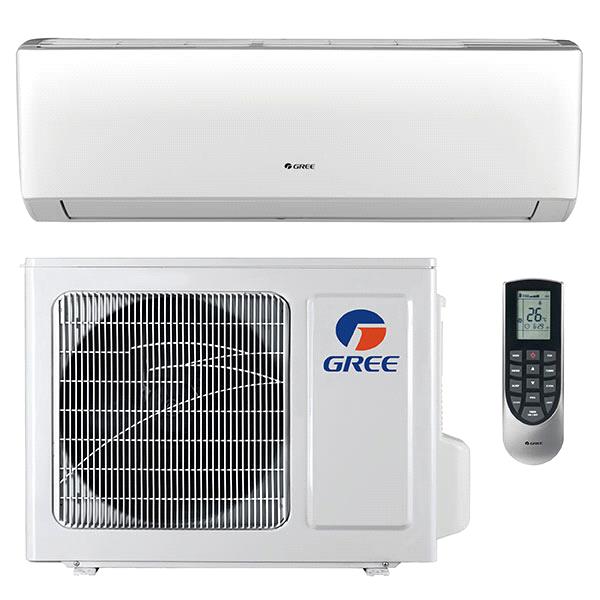

- (1) Gree VIR09HP230V1AO Heat Pump Mini Split Outdoor Condenser
- (1) Gree VIR09HP230V1AH Wall Mounted Heat Pump Mini Split Indoor Unit
- (1) Gree Wireless Remote Controller
Product Note
This product requires the following accessories for installation:
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
- Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
