Product Name :

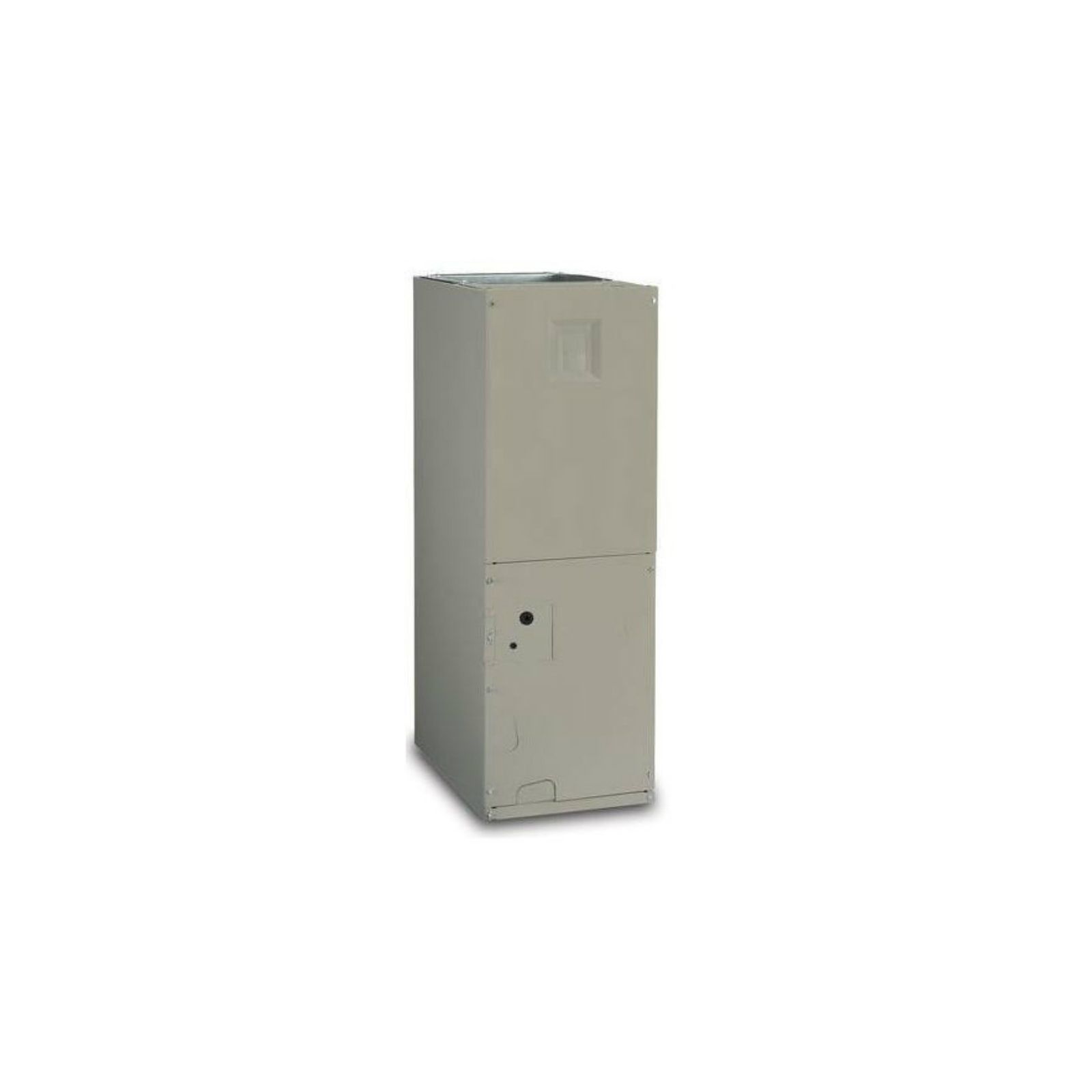

Nortek 921162 - B6EMMX48K-C - 4 Ton 14-15 SEER Air Handler, ECM Fixed Speed, 22 1/2" W Cabinet
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
Nortek B6EMMX Series, Air Handler with TXV, 14-15 SEER, R-410A Refrigerant, Features:- Energy Efficient Fixed Speed ECM Motor: Provides 16 field-selectable cooling airflows and 16 field-selectable heating airflows to match any application.
- Quiet Blower Operation: Extra quiet and smooth blower on and off cycles.
- Reduced air stratification: This results in improved air quality by optimizing humidity removal and filtration capabilities.
- Multi-poised: Can be used in horizontal, Upflow, Downflow and vertical applications.
- Built in Filter Rack: makes the air handler easy to service.
- Plug-in Heater Kit: Available in 5 kW through 30 kW (Not for use in 115 Volt units)
- Circuit Board: Incorporating blower time delay relay, low voltage terminal strip, and heat-strip sequencing.
- Breaker Accessibility: Breaker accessible from the front of the unit when heater is applied.
- Plastic Drain Pan: Provides corrosion resistance.
- Durable Cabinet: Galvanized steel with a polyurethane finish. The finish will endure 950 hours of salt spray and resist corrosion 50% better than comparable units.
- Designed to meet the requirements 610.2.A.2: Meets Florida building code requirements for air leakage.
- Thermal Expansion Valve: Factory installed externally equalized thermal expansion valve provides precise refrigerant control under varying load conditions.
- Cabinet Insulation: 1" insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating in difficult applications.
- Anteater MCTM Micro-Channel Coil Technology: All aluminum coil provides high corrosion resistance.
Name |
Nortek 921162 - B6EMMX48K-C - 4 Ton 14-15 SEER Air Handler, ECM Fixed Speed, 22 1/2" W Cabinet |
Item Number |
B6EMMX48KC |
Manufacturer Product Number |
921162 |
SKU - PIM Number |
1454405454151 |
ERP Number |
320239 |
Unit of Measure |
EA |
Weight |
106.5 Pounds (Lb) |
Length |
26.5 Inches (In) |
Width |
24.5 Inches (In) |
Height |
57.0 Inches (In) |
Country of Origin |
USA |
Brand |
Nortek |
Equipment Type |
Heat Pump |
Tonnage |
4 |
Stage |
Single |
SEER |
15 |
Refrigerant |
R-410a |
Cooling Capacity |
48000 |
Air Flow |
Multi-Position |
Voltage |
208-230 VAC |
Phase |
Single |
Cycle/Hertz |
60 Hz |
Circuit Breaker - Min Amps |
50 |
Circuit Breaker - Max Amps |
60 |
Minimum Circuit Amps |
50 |
Maximum Fuse Size |
60 |
Blower Motor HP |
3/4 HP |
Filter Size |
20" x 20" x 1" |
Rated Load Amps |
5.5 |
Drain Connection Size |
3/4" |
Suction Line Fitting |
Sweat |
Liquid Line Fitting |
Sweat |
Certifications |
AHRI, Nate |
Color |
Gray |
Warranty Offered |
Yes |
Energy Star Rated |
No |
UL Listed |
No |
Drain Connections |
1 |
Product Family |
B6EM |
Motor HP |
3/4 HP |
Motor Type |
ECM |
