Brand : Fujitsu Single Zone Wall Mount
hvac prices

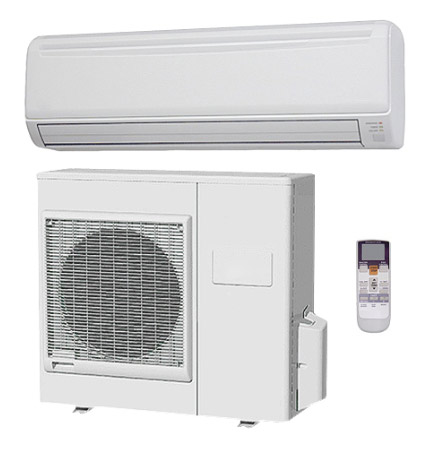

Product Name : AOU9RLS2/ASU9RLS2 Fujitsu 9000 BTU Heat Pump Wall Mounted Single Zone

Item# :
AOU9RLS2-ASU9RLS2
Your Price :
Choose QTY :
heat pump splits

Fujitsu AOU9RLS2 Specifications:
Cooling Capacity BTU/h: 3,6000 - 9,000
Heating Capacity BTU/h: 3,000 - 12,000
Operating Range Cooling, F: 14 - 115
Operating Range Heating, F: 5 - 75
SEER : 27.2
EER Clg/Htg: 17.31/15
HSPF: 12
Power Supply Voltage/Frequency/Phase: 208-230/60/1
Maximin Fuze Size (Amp): 15
Refrigerant Piping Max Ht. Difference (ft.): 49
Refrigerant Piping Max Total Length Each (ft.): 66
Refrigerant Piping Max Combined Total Length (ft.): 66
Discharge Vapor Line (O.D.) inches, Flare: 1/4
Suction (O.D.) inches: 3/8
Refrigerant Type: 410A
Outdoor Unit Noise Level db (A) Heating Hi/Low: 48/49
Otdoor Unit Weight (Lbs): 88
Outdoor Unit Dimensions HxWxD (Inches): 24-13/32 x 31-3/32 x 11-3/4
Fujitsu ASU9RLS2 Specifications:
Cooling Capacity BTU/h: 3,600 - 9,000
Heating Capacity BTU/h: 3,000 - 12,000
Moisture Removal pt/h: 2.8
Temperature Setting Range Cooling, F: 64 - 90
Temperature Setting Range Heating, F: 60 - 80
Drain Pipe Size, OD: 5/8
Power Supply Voltage/Frequency/Phase: 208-230/60/1
Electrical Connection, AWG: 14/3 with Ground
C.F.M. Hi/Med/Low/Quiet: 453/374/274/180
Sound Pressure Level db (Hi,Me,Lo,Qu): 46/41/33/24
Discharge Vapor Line (O.D.) inches: 1/4
Suction (O.D.) inches: 3/8
Indoor Unit Weight (Lbs): 25
Indoor Unit Dimensions HxWxD (Inches): 11-5/8 x 31-3/32 x 8-15/32
Remote Controll Type: Wireless (Optional Wired)
Filters: Washable/ Apple Catechin/Ion



Fujitsu 9RLS2 HALCYON Wall Mounted Mini Split Single Zone Heat Pump 27.2 SEER - 9,000 BTU

The Fujitsu 9RLS2 HALCYON Wall Mounted Mini Split Single Zone Heat Pump System is an all-in-one solution to get a comfortable environment in any application. It will provide up to 9,000 BTU of capacity. HFI Halcyon Systems by Fujitsu are recognized in the United States by contractors, homeowners and HVAC Specialists for ease of operation, lifetime reliability and great preformance that results in an unbeatable value balance that makes the Fujitsu 9RLS2 one of the best heating and cooling solution on the market. Thanks to a variety of styles and applications for indoor units (wall mounted, ceiling cassette, concealed duct and floor standing), Fujitsu Mini Splits are perfect for any home or office space.

Some typical applications for the Fujitsu 9RLS2 System include:

  • Residential (Single and Double Family Houses, Townhomes, Dormitories, Small Apartment Buildings).
  • Commercial (Offices, Malls, Restaurants, Shopping Centers).
  • Institutional (Hospitals, Academic).
  • Data Centers, Food Processing Areas, Laboratories and many other.

Quick and easy installation is a significant consideration in new construction and even more important in renovation applications. The Fujitsu Mini Split System installation procedures ensure minimal interruption of operations and activities in critical service applications. Fujitsu Mini Split Indoor Units are easy to install practically anywhere:

  • High on the wall to blend into a room without taking up window space.
  • In the ceiling and totally out of sight.
  • Low on the wall at floor level to be unobtrusive within the space.

Fujitsu 9RLS2 HALCYON Wall Mounted Mini Split Single Zone Heat Pump Features and Benefits:
  • Auto Changeover. Operation Mode will be adjusted automatically to maintain desired temperature.
  • Sleep Timer. Gradually lowers thermostat settings in heating mode and raises them during cooling operation.
  • Swing Operation. Automatically swinging Air Flow Direction Louvers to direct airflow.
  • Mildew-Resistant Filter. Fujitsu Indoor Unit Air Filter resists growth of mildew.
  • Super Quiet Operation. Quiet mode of the indoor unit features extra quiet operation by reducing airflow.
  • Air Cleaning Mode. Quickly purifies the room enivonment.
  • Inverter Driven Compressor - Maximizes energy savings by making sure only the energy needed to precisely cool or heat an area is used. You can enjoy high-speed cooling and heating and consistent delivery of comfort year-round.
  • Fast Installation - Installs quickly and easily, having no need for major construction and remodeling.
  • Complete Zone Control - Realizes maximum control and energy efficiency by cooling and heating only those spaces in use.
  • Convenient Controllers - Fujitsu Electric offers a comprehensive remote controller that controls temperature, fan speed, and more. Choose from four modes: COOL, HEAT, AUTO, and DRY.
  • Easy Maintain - With easily accessible filters, little or no ductwork to keep clean, and simple wiring between the indoor and outdoor units, Fujitsu Mini Split Systems require minimal maintenance, providing another level of comfort and convenience.
  • Environmentally Friendly Refrigerant - Uses R410A, an environmentally friendly refrigerant.








For 30 years, we have been working hard to make the world a more comfortable place. We have produced and shipped millions of air conditioning systems throughout the world to make the hottest places cool and the coolest places comfortable. As one of the top two mini-split air conditioner and heat pump manufacturers for North America, Fujitsu’s innovation drives the success of the Halcyon line. These products have been designed to provide zoned comfort for residential and commercial applications. Engineered to install quickly and easily without ductwork, Halcyon systems provide preferred cooling and heating solutions where others cannot. Halcyon by Fujitsu is a new way to think about air conditioning in the modern world. Now you can choose a high performance, permanent and easy to install air conditioning system that quietly blends with your environment.
about fujitsu
> CLICK THE LINK TO OPEN THE FUJITSU BROCHURE IN A NEW WINDOW

Fujitsu General America, Inc. – Limited Warranty Statement





This is a Limited Warranty provided by Fujitsu General America, Inc. (“FGAI”) to the original end-user consumer (“Purchaser”) of the Fujitsu Halcyon System (the “System”). Installation, operation or use of the System will constitute acceptance of the terms hereof.



1. STANDARD LIMITED WARRANTY COVERAGE (PARTS ONLY)

FGAI warrants for the time periods set forth below that the System will be free of defects in material and workmanship for human thermal comfort or other approved applications under normal use and service. Any repaired or replaced component or part shall be warranted for the remainder of the original limited warranty period or thirty (30) days after shipment of replacement part, whichever is longer. FGAI will provide the following benefits, subject to the conditions stated below:

PARTSFor a period of five (5) years beginning on the date of purchase or installation completion and system start-up, as verified by an installer’s invoice or proof of purchase, FGAI will supply, at its option, either new, like kind or rebuilt replacement Parts. “Parts” are defined as integral components of Fujitsu Halcyon condenser, evaporator or refrigerant branch boxes and only includes items which are not otherwise covered or excluded under this warranty.

COMPRESSOR For a period of seven (7) years beginning on the date of purchase or installation completion and system start-up, as verified by an installer’s invoice or proof of purchase, FGAI will supply, at its option, either new, like kind or rebuilt replacement compressor(s).



CONTROLS AND ACCESSORIES – For a period of ninety (90) days beginning on the date of purchase or installation completion and system start-up, as verified by an installer’s invoice or proof of purchase, FGAI will supply, at its option, either new, like kind or rebuilt replacement controls. Controls include: Wired Remote Control, IR Receiver, Simple Remote Control, Central Remote Controller, Wireless Remote Control, Fujitsu External Drain Pump and any other Fujitsu Halcyon Controls or Accessory Components.



1.1. EXTENSION OF THE STANDARD LIMITED WARRANTY

The Standard Limited Warranty covering parts and the compressor(s) will be extended to a period of ten (10) years to the Purchaser if the following conditions are met:

a) The System is registered ONLINE within 60 days from the date of installation, or, in the case of a newly constructed home, within 60 days of the Purchaser’s purchase of the home.

b) The System is installed in a residential single family or owner occupied multifamily home.

c) The Purchaser resides at the location where the System is installed.

d) The System is purchased after June 1, 2015.

e) Defective Parts and Compressor are made available for return to FGAI and become the property of FGAI.



The Standard Limited Warranty covering parts and the compressor(s) will be extended to a period of twelve (12) years to the Purchaser if, in addition to meeting the conditions of Section 1.1 (a)-(e), the System is:

(f) installed by a Fujitsu Elite Contractor.



2. PROPER INSTALLATION – This Limited Warranty applies only to Systems that are installed by contractors who are licensed for HVAC installation under applicable local and state law (Licensed Contractor), and who install the System in accordance with: (a) all applicable building codes and permits; (b) FGAI’s installation and operation instructions; and (c) good trade practices.



3. REGISTRATION – Register the System online at: http://www.fujitsugeneral.com/contractors/registration/. Fujitsu Elite Contractor may register through the toolbox website at: http://www.fujitsugeneral.com/dealer_toolbox.htm.



4. TERMS OF WARRANTY – BEFORE REQUESTING SERVICE please review the user instructions and technical documentation for your System to confirm that the electric power is supplied and user controls are properly adjusted.

TO OBTAIN WARRANTY PARTS SERVICE contact the Fujitsu Elite Contractor who installed the System, or search for the nearest HVAC contractor within the applicable Limited Warranty period. A list of Fujitsu Elite Contractors may be obtained at www.fujitsugeneral.com, by calling 1-866-952-8324 or by emailing servicehvac@fujitsugeneral.com or partsinfo@fujitsugeneral.com. Proof of purchase or proof of installation by a Licensed Contractor is required to make this Limited Warranty valid. Protect your warranty by registering your product immediately, buying only from an authorized dealer, and checking the product and packaging to verify that the factory serial number have not been tampered with. THESE LIMITED WARRANTIES DO NOT INCLUDE LABOR or any other costs incurred during service, maintenance, repair, removing, replacing, or installing the System, or any parts or other components. Purchaser is solely responsible for all such labor and costs. Please consult the applicable technical documentation regarding maintenance procedures. This Limited Warranty shall not be modified or amended by, and no obligation or liability shall arise out of, FGAI providing, directly or indirectly, any technical advice, information and/or service to Purchaser in connection with the System.


General Product Information

What is a ductless mini-split system?
A ductless mini-split system is comprised of an indoor unit called the evaporator and an outdoor unit called the condensing unit.  The evaporator is connected to the condensing unit by copper tubing and electrical wiring which is passed through a 2 ½” – 3” hole.  Basically, it is a small central air unit with the flexibility of cooling or heating one room or more; zoning.

What are the advantages of installing a Fujitsu ductless mini-split over a central air system?
1) With Central Air you must cool an entire home when only one room may need cooling.  On the other hand, ductless mini-splits cool only the areas you want and not the areas you don’t.
2) 18,000 BTU is a typical minimum central air unit.  With ductless mini-splits, you can use 9,000 or 12,000 BTUs.
3) Typical 3-ton homes are not zoned or require complex zoning systems, which makes it very expensive for the homeowner.  With ductless mini-splits, multiple evaporators make zoning as simple as setting a remote control.
4) Energy wasted in long lengths of uninhabited ductwork means higher energy bills.  Less than 5% cooling loss occurs in insulated refrigerant lines compared with up to 25% through ducts.
5) Retrofitting homes requires cutting holes in walls, floors, ceilings or decreasing closet space with ducts.  Ductless mini-splits requires just a 3 or 4” diameter hole in the outside wall.  Means less mess and better home aesthetics.


What color do Fujitsu’s ductless mini-split systems come in?
Each Fujitsu ductless mini-split wall mount model is offered in one standard beige color.  Alternate colors are not available.

Can I paint the ductless mini-split unit?
Fujitsu doesn’t recommend painting the evaporator.  If for any reason a problem occurs with the unit in the future, the warranty will become null and void.

 Installation

Can I install a Fujitsu mini-split myself?
No.  Only an authorized certified HVAC contractor can install Fujitsu units.
