Brand : YMGI Mix N Match
hvac prices

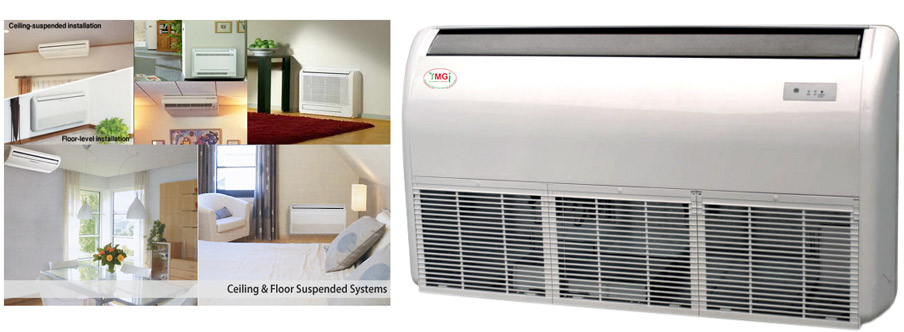

Product Name : YMGI Multizone Purpose Floor/Ceiling 24,000 Indoor

Item# :
wmms-24EU-(59)4
Your Price :
Choose QTY :
heat pump splits



Description

(59)2 DC Inverter Multiple Zone-Indoor Units-Ceiling/Floor Unit EU, 24K Btu/h, 208-230/1/60

Items Unit / Conditions WMMS-24EU-V2B(59)2
Power Supply Voltage/Ph/Hz 208-230/1/60
Allowed Voltage Range 187-253V
Cooling Capacity High/Standard/Low 26500/22800/9600
Heating Capacity ID 70/60, OD 47/43F 27400
ID 70/60, OD 17/15F 23600
ID 70/60, OD 17/5F 20600
SEER Btu/h.W 16
HSPF Btu/h.W 8.2
Dehumidifying Capacity Pints/Hr. 5.28
Air Flow (CFM) High/Medium/Low 736/530/412
Air-throw (Ft.) Horizontal Installation 35-30 Upon Mounting Height/Speed/Temp.
Upright Installation 35-20 Upon Mounting Location/Speed/Temp.
External Static Pressure Water In. 0
Sound Level Pressure dB(A) (H/M/L) 48/46/44
Power dB(A) (H/M/L) 58/56/54
Fan Motor Model FG50A
Shaft Double
Speed (RMP, H/M/L) 985/800/680
Output (W) 40
Input (W) 145
Capacitor (uF) 2
Fan Wheel Type-Piece Centrifugal-4
Diameter x Width (In.) 5.5 x 4.1
Swing/Step Motor Model MP35CB
Piece 2
Output (W) 2
Input Power of Ele. Heater Type-W NA
Electrical Protection Fuse PCB/Transformer T3.15A 250V / 0.2A
Evaporator Coil Type Alu. Fin/Inner Grooved Copper Tube
Color Blue or the Like
Copper Line Connections Sealed by Dry Nitrogen Yes
Flare/Nut-Liuqid + Gas 1/4? + 5/8?
Drain Hose Connection OD (In.) 0.67
Condensate Pump Installed-Lift (In.) NA
Refrigerant Environmental Friendly R410A
Filter Type-Feature Standard-Washable
Size WxH (In.) – Qty. 21.8 x 8.68 – 2
Clean Coil Surface Anti-Mildew Function Yes
Pre-heating Function Anti-Cold Blowing Yes
Memory of Previous Set-ups Power is Lost/Resumed Yes
Auto-Restart Function If Power is Resumed Yes
Unit Dimensions Net WxHxD (In.) 48 x 27.6 x 8.9
Package WxHxD (In.) 52.8 x 32.3 x 11.8
Unit Weight Net (LBs) 99
Packaged (LBs) 119
Loading Capacity 20’/40’/40’HQ 66/132/132
