Product Name :

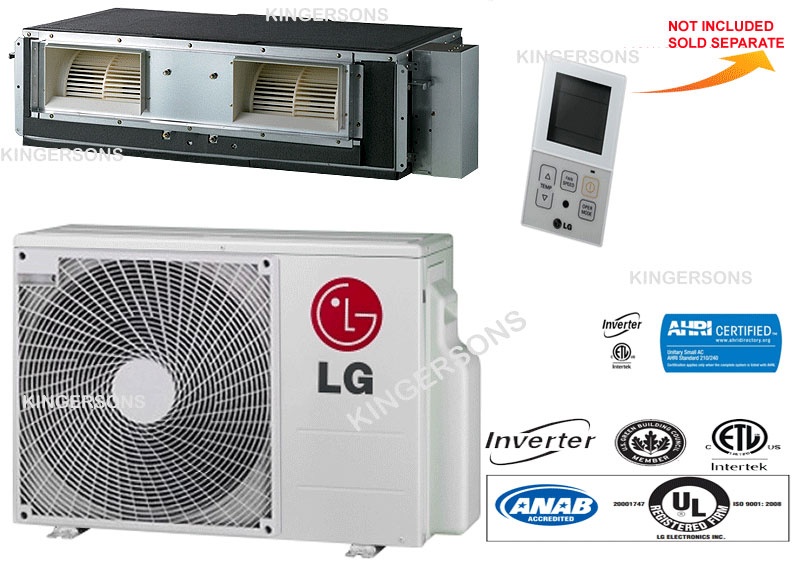

LH249HV LG 24,000 BTU 17 SEER Horizontal Ducted Heat Pump System LHN248HV LUU249HV
|
|
|
|
|
|
Item# :
|
LHN248HV LUU249HV
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
LG LH249HV
All LG's single zone and multi-zone system solutions offer stylish and energy-efficient products to the residential and light commercial consumer. One-to-one systems that include an outdoor unit and a ducted indoor unit, this LG 24,000 BTU 17 SEER horizontal ducted heat pump system is a single zone system with high static ducted indoor units for ceiling-concealed installation, and contains wired wall controller for easy control. - Wired Controller NOT Included
- Inverter ( variable speed fan )
- Internal Condensate Pump
- ESP control
- Hot start
- Auto Restart
- Child Lock
- Group control
- Sleep Mode
- Timer ( on / off )
-
- Indoor Unit Type:
- High Static Duct
-
- Cooling BTUs:
- 24000
-
- Dehumidification (pts/hr):
- 5.1
-
- CFMs:
- 777 / 706 / 636 (H / M/ L)
-
- Fan Speeds:
- 3
-
- Room Size Coverage:
- Extra Large 800+ Sq. Ft.
-
- Min. Indoor Noise Level (dBA):
- 34
-
- Indoor Noise Level (dBA):
- 37 / 35 / 34 (H / M/ L)
-
- Control Type:
- Controller Required (NOT INCLUDED)
-
- Line Set Liquid Line:
- 1/4"
-
- Line Set Suction Line:
- 1/2"
-
- Width (in.):
- 35.5
-
- Depth (in.):
- 27.25
-
- Height (in.):
- 10.688
-
- Net Weight (lbs.):
- 58.6
-
- Parts Warranty:
- 10 Years
-
- Labor Warranty:
- None
The ceiling cassette mini split system is a great alternative, when floor space is at a premium. It is perfect for light commercial applications, and it works efficiently in large open spaces. The Jet Cool feature operates the unit at high speed for up to 30 minutes to quickly cool a room down to 64°F. Swirl Wind is a four-way controlled louver and fan speed system that creates a stronger, wider air flow and reduces temperature stratification. The Dehumidifying Mode of the indoor unit accurately senses room temperature and controls humidity by shutting down the compressor before a room is over-cooled. When paired with the corresponding indoor unit, the system will operate in cold conditions - down to 5°F in the cooling mode and down to -4°F in the heating mode. This is a perfect unit for year round comfort control in most areas. - Inverter (Variable speed compressor)
- Internal condensate pump included
- Swirl Wind
- 4-Way cooling
- Jet Cool
- Cooling mode
- Dehumidifying mode
- Night Quiet Operation
- Built-in low ambient standard, down to 5ºF (cooling mode)
- Fan mode
- Independent vane control
- 3 fan speeds
- Evaporator frost control
- 24-Hour on/off timer
- Auto restart
- Auto changeover
- Temperature display on remote
- Ultra-quiet turbo fan
- Gold Fin Anti-Corrosion
Must be installed by a qualified, licensed HVAC technician. Manufacturer covers parts only under warranty. Installer is responsible for labor warranty.
-
- EER:
- 12.6
-
- SEER:
- 17
-
- Energy Star:
- Yes
-
- Cooling BTUs:
- 24000
-
- Cooling Amps:
- 15.1
-
- Dehumidification (pts/hr):
- 5.1
-
- Includes Heat Pump:
- Yes
-
- Heat Pump BTUs:
- 27000
-
- Heat Pump Heating Amps:
- 15.1
-
- HSPF (non-ducted):
- 9.7
-
- Room Size Coverage:
- Extra Large 800+ Sq. Ft.
-
- Outdoor Unit Noise Level (dBA):
- 52
-
- Control Type:
- Hand Held Remote
-
- Wired Thermostat Optional:
- Yes
-
- Voltage:
- 208-230V
-
- Circuit Breaker Size (Amps):
- 30
-
- Line Set Liquid Line:
- 3/8"
-
- Line Set Suction Line:
- 5/8"
-
- Maximum Elevation (ft.):
- 98.4
-
- Maximum Pipe Length (ft.):
- 164
-
- Pipe Length (No Addl Refr Req):
- 24.6
-
- Operating Range - Cooling:
- 5°F - 118°F
-
- Operating Range - Heating:
- -4°F - 64°F
-
- Inverter Technology:
- Yes
-
- Outdoor Unit Width (in.):
- 37.406
-
- Outdoor Unit Depth (in.):
- 12.969
-
- Outdoor Unit Height (in.):
- 32.844
-
- Outdoor Unit Weight (lbs.):
- 130
-
- Parts Warranty:
- 10 Years
-
- Labor Warranty:
- None
-
- Compressor Warranty:
- 10 Years
 |
About Duct-Free Systems
A duct-free system, also known as a “split” air conditioner system, is made up of or includes two components: an indoor unit to deliver conditioned air to the room, and an outdoor unit located outside of the house. Compact refrigerant lines run between the two units, eliminating the need for bulky ductwork. Duct-free systems are ideal for older homes that have no ductwork, room additions, or areas in homes that just never seem to be the right temperature or are never comfortable.
LG duct-free systems are available in a range of sizes and styles--including systems that can heat and cool multiple rooms with a single outdoor unit to fit almost any need. The indoor units are available in many different types to fit with the look and feel of your home. |
 |
LG Electronics USA is a division of LG Group founded in 1947. LG Group is a widely diversified company comprising of thirty six business units manufacturing goods and providing services in the chemical electronics, telecom, lighting systems, consumer appliances, solar energy, and air conditioning. In July 2010 LG Group was ranked 67th in the Fortune 500® list of largest companies with revenue exceeding $100.5 billion, operations in over 60 countries, and employing approximately 186,000 worldwide. |
 |
With 15,000 engineers, annual research and engineering investments exceeding $1.7 billion, LG’s commitment to deliver the most stylish, energy efficient, high quality air conditioning products is the reason why we are one of the largest producers of air conditioners in the world holding the world’s largest air conditioning unit manufacturer position 2000-2007; 7 straight years. |
|
THE LG DUCT-FREE ADVANTAGE
For ease of installation, energy efficiency and quiet performance, duct-free systems are the smart choice
CUSTOMIZED COMFORT…FOR LESS
Whether you’re creating a quiet, comfortcontrolled room, or simply want to heat or cool an area without expensive ductwork, LG’s duct-free systems set a new standard for efficiency, great looks and comfort. Duct-free systems are much simpler and economical to install because they only have three basic parts: an outdoor condensing unit, an indoor unit, and the components that connect the two. Duct-free systems are ideal for home or office additions, to replace unsightly window units, and for renovations or retro-fits where it’s important to preserve the building’s original appearance.
THE BENEFITS OF DUCT-FREE
• Fast installation – With no costly ductwork, duct-free systems can be installed in places where conventional ducted systems simply can’t go.
• Incredibly quiet – Indoor units operate at just 26 dB (the level of softly rustling leaves!).
• Custom temperature control – It’s easy to precisely maintain the temperature in each room.
• Attractive design – Choose from a wide variety of elegant looks to enhance any interior decor.
LG’s cutting-edge features:
• Reduced energy costs. You can cut your cooling bill with LG’s energy-efficient technology. Look for our Inverter Air Conditioners featuring high-performance variable-speed compressors and our Multi Power System™ with exclusive dual compressor technology.
• Cleaner, healthier air. Plasma air purifying technology ensures cleaner, fresher air.
• Better air circulation. Computer controlled louvers and fan speeds minimize temperature differences in the room.
• High-speed cooling. Powerful Jet Cool feature quickly cools warm rooms down to a
comfortable temperature.
• Built to last. The exclusive GoldFin™ Anti-Corrosion coating helps keep your system
running like new for years.
THE BEAUTIFUL NEW DEFINITION OF COOL
Experience the revolutionary new Art Cool™ customizable heat pump systems.
Comfort has never looked so good At LG, we believe comfort is a beautiful thing. That’s why we designed a fully customizable heat pump system that cools and heats with worldclass efficiency, but passes as a work of art as well.
A gallery of options
The innovative LG Art Cool™ Picture design allows you to display your favorite image in the customizable picture area. Any graphic can be placed in the Art Cool™ frame. Showcase artwork, a family portrait or vacation pictures – it’s entirely up to you.
Intelligent design inside and out
But the real beauty of Art Cool™ is that it also has all the performance features you look for in an air conditioner:
• Remote control operation
• Outstanding air purification
• Natural air flow
• Auto operation modes
• Available only in heat pump models |
|
EFFICIENT multi -room solutions
It’s never been easier or more economical to cool multiple rooms from a single outdoor unit.
Space-saving convenience
The Flex Multi-Split System allows you to operate up to four indoor units from just a single outdoor
condensing unit. This gives you extra design flexibility and makes installation easier, which saves
you money.
Multiple rooms add up to multiple benefits
Flex Multi-Split Systems maximize the efficiency and cost savings of duct-free technology by providing:
• Individual room temperature control – every indoor unit comes with its own remote control, so each room can be set to its own temperature.
• All-season comfort option – you can choose cooling only or heat pump models that have both cooling and heating capabilities.
• Easy Installation – not only is there no ductwork required, but the indoor units mount easily on virtually any wall.
|
 |
|
|
|
|
|
|
|
WARRANTY
|
Warranty From The Manufacturer - Only applies to units installed by licesensed HVAC Or Air Conditioning company.
- 5 years parts
- 7 years compressor
- LG Electronics, Inc. (“LG”) warrants your LG Duct-Free Split Air Conditioner (“product”) against defect in materials or workmanship under normal household use, and during the warranty period set forth below, LG will, at its option, repair or replace the product. Replacement part(s) will meet intended fit and function of the original part(s). Replacement parts are warranted for the unexpired portion of the original warranty period. This limited warranty is valid only to the original retail purchaser of the product while the system remains at the original installation site, and is not assignable or transferable to any subsequent purchaser or user. Note: This limited warranty applies to parts only and does not cover labor.
COMPLETE DETAILS:
If you received a product that is "Dead On Arrival" we will replace it with brand new unit. You have 15 days from the date of delivery to notify us of the same.
Please make sure that you have an invoice from the licensed HVAC (or air conditioning company) with our model number AND serial number to receive any warranty. Replacement parts will be shipped and credit will be given when the part is returned to supplier. You will not receive credit for replacement units or warranty parts without proper documentation. Proper documents include an invoice from us and an invoice from a licensed installer. Our invoice will be emailed to you with the tracking number that you can print and save for future reference.
NO LABOR. THESE LIMITED WARRANTIES DO NOT INCLUDE LABOR or any other costs incurred for service, maintenance, repair, removing, replacing, installing, complying with local building and electric codes, shipping or handling, or replacement of the System, compressors or any other parts. For items that are designed to be maintained or replaced by the owner, the owner is solely responsible for all labor and other costs of maintaining, installing, replacing, disconnecting or dismantling the System and parts (such as filters or belts) in connection with owner-required maintenance. Air filter cleaning and/or replacement for each applicable indoor unit are owner-required maintenance, and labor for this procedure is not covered under warranty. Please consult the applicable technical documentation for air filter cleaning and other maintenance procedures.
D. Proper Installation. This Limited Warranty applies only to Systems that are installed by contractors who are licensed for HVAC installation under applicable local and state law, and who install the Systems in accordance with (i) all applicable building codes and permits; (ii) LG’s installation and operation instructions; and (iii) good trade practices.
BEFORE REQUESTING SERVICE, please review the applicable technical documentation to insure proper installation and correct customer control adjustment for the System. If the problem persists, please arrange for warranty service.
1. TO OBTAIN WARRANTY PARTS SERVICE:
(a) Contact the licensed contractor who installed the System or the nearest licensed contractor, dealer or distributor of any defect within the applicable warranty time period.
(b) Proof of the installation date by a licensed contractor is required when requesting warranty service. Present the sales receipt, building permit or other document which establishes proof and date of installation. Otherwise, this Limited Warranty shall be deemed to begin one hundred twenty (120) days after the date of manufacture stamped on the System. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF COVERAGE UNDER THIS LIMITED WARRANTY. However, please return the Owner Registration Card so that LG can contact you if a question of safety arises.
(c) This Limited Warranty applies only while the System remains at the site of the original installation and only to locations within the continental United States, Alaska and Hawaii.
2. THIS LIMITED WARRANTY DOES NOT COVER: property damages, malfunction or failure of the System, or personal injury caused by or resulting from: (a) accident, abuse, negligence or misuse; (b) operating the System in a corrosive or wet environment containing chlorine, fluorine or any other hazardous chemicals; (c) installation, alteration, repair or service by anyone other than a licensed contractor or other than pursuant to the manufacturer’s instructions; (d) improper matching of System components; (e) improper sizing of the System; (f) improper or deferred maintenance contrary to the manufacturer’s instructions; (g) physical abuse to or misuse of the System (including failure to perform any maintenance as described in the Operation Manual such as air filter cleaning, or any System damaged by excessive physical or electrical stress); (h) Systems that have had a serial number or any part thereof altered, defaced or removed; (i) System used in any manner contrary to the
Operation Manual; (j) freight damage; or (k) damage caused by force majeure or other factors such as power surge damage caused by lightning and fluctuations in or interruptions of electrical power.
3. THIS LIMITED WARRANTY ALSO EXCLUDES: (a) SERVICE CALLS WHERE NO DEFECT IN THE SYSTEM COVERED UNDER THIS WARRANTY IS FOUND; (b) System installation or set-ups; (c) adjustments of user controls; or (d) Systems purchased or installed outside the continental United States, Alaska and Hawaii. Consult the operating instructions for information regarding user controls.
4. This Limited Warranty shall not be enlarged, extended or affected by, and no obligation or liability shall arise or grow out of, LG providing, directly or indirectly, any technical advice, information and/or service to Owner in connection with the System.
5. EXCEPT AS OTHERWISE PROVIDED IN THIS LIMITED WARRANTY, LG MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SYSTEM. LG DISCLAIMS AND EXCLUDES ALL WARRANTIES NOT EXPRESSLY PROVIDED HEREIN AND ALL REMEDIES WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE. NO ONE IS AUTHORIZED TO CHANGE THIS LIMITED WARRANTY IN ANY RESPECT OR TO CREATE ANY OTHER OBLIGATION OR LIABILITY FOR LG IN CONNECTION WITH THE SYSTEM. LG DISCLAIMS ALL LIABILITY FOR THE ACTS, OMISSIONS AND CONDUCT OF ALL THIRD PARTIES (including, without limitation, the installing contractor) IN CONNECTION WITH OR RELATED TO THE SYSTEM.
6. UNDER NO CIRCUMSTANCES SHALL LG BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, SYSTEM FAILURE, IMPAIRMENT OF OTHER GOODS, COSTS OF REMOVAL AND REINSTALLATION OF THE SYSTEM, LOSS OF USE, INJURY TO PERSONS OR PROPERTY ARISING OUT OR RELATED TO THE SYSTEM WHETHER BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, TORT OR OTHERWISE, EVEN IF LG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. IN NO EVENT SHALL LG’S LIABILITY EXCEED THE ACTUAL PURCHASE PRICE OF THE SYSTEM WITH RESPECT TO WHICH ANY CLAIM IS MADE.
7. Some states do not allow limitations on warranties or exclusions or limitation of damages, so the above limitations or exclusions may not apply.
8. This Limited Warranty gives the owner specific legal rights and the owner may also have other rights that vary from state to state.
9. This Limited Warranty is valid only in the continental United States, Alaska and Hawaii, and it is not transferable.
|
Manuals & Downloads
|
|
FAQ'S ON DUCTLESS MINI SPLIT AIR CONDITIONERS - MOST COMMON QUESTIONS! |
|
What are mini split air conditioners?
Like the central air conditioner units, ductless mini split air conditioners have two main components: an outdoor compressor/condenser, and an indoor air-handling unit. A conduit, which houses the power cable, refrigerant tubing, suction tubing, and a condensate drain, links the outdoor and indoor units through a small hole (3 inches usually) that is drilled in the wall of the building. The main advantages of mini split air conditioners are their small size and flexibility for zoning or heating and cooling individual rooms. The number depends on how much heating or cooling is required for the building or each zone (which is also affected by how well the building is insulated). Since each of the split air conditioner zones/rooms will have it's own thermostat, you only need to condition that area when someone is present, which saves energy and money. If you are in a office building at a higher floor, you can also install Outside Compressor using our Wall Bracket.
How does it work?
For example the our mini splits use a high quality compressor and environmentally friendly green refrigerant to cool your home, and an innovative heat pump technology to keep your interiors warm in cold weather. The near silent operation is made possible by installing the compressor outside your home or offi ce. The air handler (indoor AC unit) in your dwelling is designed for ideal climate control, allowing you to cool or heat or dehumidify your interiors. You can conveniently adjust the fan speed, air flow direction, and oscillating louvers via remote control, or simply set the 24 hour timer for care free operation.
How much do they cost to run?
These energy efficient units provide localized cooling and heating for certain parts of your home or office, rather than cooling or heating other areas that are not occupied. This localized climate control enables you to reduce your energy bills. SEER ratings we have is the best standard in industry and mini split AC's are most energy efficient AC's you can ever find.
Why choose us ?
SIMPLE WE HAVE ALL THAT YOU NEED AND LOT MORE!
1. Many options to compare - We have brands like Mitsubishi, Friedrich, LG, YMGI, Carrier, Sanyo, Fujitsu, Daikin, Klimaire, Shinco, Haier, Samsung etc. This means you have low to high end prices from different brands with several different options to choose from.
2. Good Warranty on all Air Conditioners - Most of our Split air conditioners have 5 years compressor and 3 years on parts. Some brands like Mitsubishi and LG offer 7 yrs on compressor and 5 yrs on part on several products.
3. Quality - Quality has always been our number one goal. We do not sell cheap brands with poor quality at cheap prices like some of other wholesalers do. We instead sell quality products at cheap prices instead by eliminating the middle man/agent. Our brands are one of the best in the industry and have excellent feedbacks and ratings from customers. You can compare the features with any top brands and you will see them all here on our website.
4. LOWEST PRICE GUARANTEE - We will not match but beat all the prices that you have from other stores and if we can't, we will give you a product FREE (see details) as long as we are comparing apples to apples.
5. We are listed with Better Business Bureau. SO REST ASSURED THAT YOU ARE BUYING FROM A RELIABLE COMPANY AND NOT SCAMMERS ONLINE. We have been selling air conditioners for decades.
6. GET FREE TECH SUPPORT FOR INSTALLATION WITH ALL OF OUR AC'S (Check all details on our website) .
7. Excellent after sales tech support - It's not all about selling the product, it is also about providing after sales services in case you need help with figuring out .
8. Need suggestions before purchase? Call us. With experienced staff on hand we can help you make the right decision that can not only effect your heating and cooling but also can help you save money on energy bills.
9. Fast shipping! We usually will ship the product same or next day. Our customers receive the packages normally within 1-5 business days once shipped.
10. New Versions! Advanced features! Complete packages With or without install kits! Find them all here...
What size unit is good for my application? How to choose the right AC?
Keep a pen and paper next to you and write down answers to below questions first. Then move to step 2.
A. First question is how many air handlers (indoor units) would you need?
Answer to this comes from the number of rooms you want to cool or heat. Remember since this is ductless, you will need ONE air handler per room. But if your kitchen, dinning area and living room are all connected and open to each other, in that case you will need just ONE for this entire area. But if your dinning room has walls around it with only a door size opening from the kitchen, in that case you may want to put ONE in kitchen and ONE in dinning room.
B. Are the rooms well insulated? If not we will call it "Situation B"
C. How many windows you have in each room? Are these energy efficient windows? (single pane or double pane windows). If you have 2-3 windows in one room and they are single pane windows that are not energy efficient, we will call it a "Situation C"
D. Then you need to know the height of your ceiling. Is it a regular ceiling or more than 10 ft high? If it has a high ceiling of 15 or 20 ft, we will call it is "Situation D"
E. Do you have any heat generating source in these rooms like sunlight, equipments, computers/server or kitchen etc? If yes, we will call it a "Situation E"
F. Last but not the least you need to know the sq ft of each room.
Once you have the above info, it gets simple then. Below table will help you decide and give you a approx. estimation of what you really need.
|
Please consult your HVAC installer before making your decision. Below info can help you decide, but it cannot be guaranteed accurate under different circumstances. |
BUY 9000 BTU Split AC? |
BUY 12000 BTU Split AC? |
BUY 18000 BTU Split AC? |
BUY 24000 BTU Split AC? |
|
If your room is Upto 300 sq ft without any bad situation B, C, D or E (Example: The room is 275 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
YES |
NO |
NO |
NO |
|
If your room is Upto 300 SQ FT with either one of the above bad situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 250 sq ft) |
MAYBE WILL WORK |
YES |
NO |
NO |
|
If your room is Upto 300 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
YES |
MAYBE (If it is a restaurant kitchen for example) |
NO |
|
|
|
|
|
|
|
If your room is between 300 - 500 sq ft without any situation B, C, D or E (Example: The room is 475 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
NO |
YES |
NO |
NO |
|
If your room is between 300 - 500 SQ FT with either one of the above situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 450 sq ft) |
NO |
MAYBE WILL WORK |
THIS IS BETTER OPTION |
NO |
|
If your room is between 300 - 500 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
NO |
YES |
MAYBE IF THE SITUATION WAS WORSE |
|
|
|
|
|
|
|
If your room is between 500 - 700 sq ft without any situation B, C, D or E (Example: The room is 675 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
NO |
NO |
YES |
NO |
|
If your room is between 500 - 700 SQ FT with either one of the above situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 650 sq ft) |
NO |
NO |
YES |
MAYBE |
|
If your room is between 500 - 700 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
NO |
MAYBE WILL WORK |
YES TO BE ON SAFER SIDE |
|
|
|
|
|
|
|
If your room is between 700 - 1000 sq ft without any situation B, C, D or E (Example: The room is 975 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
NO |
NO |
NO |
YES |
|
If your room is between 700 - 1000 SQ FT with either one of the above situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 950 sq ft) |
NO |
NO |
NO |
YES (MAYBE A 30,000 BTU NEEDED) |
|
If your room is between 700 - 1000 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
NO |
TWO 18000 BTU'S NEEDED A TOTAL OF 36000 BTUS |
NO |
|
|
|
|
|
|
|
For room more than 1000 sq ft, example it is a office space with 1500 sq ft, you will need more than one unit in that one big room for better circulation. So you can buy a 2-3 sinagles zone units or dual zone, trizone or a quadzone depending upon how big the room is as per above calculations. |
|
|
|
|
Now once you have decided how many units you need, it is time to see what features you want. Low Ambience Feature
For example if you live in New York where the temperature goes below 15 deg quiet a few times in a year and if you need this AC unit to do the heating job as well in the winter time, in that case DO NOT buy the standard SEER 13 without Low Ambience. You need the unit that has Low Ambience operation as they can produce heat in temperature as low as minus 4 deg or zero deg depending upon which unit you end up buying. YMGI/LG/Friedrich/Haier for example have units that produce heat in temperature as low as zero deg.
HIGH SEER AND INVERTER FEATURE
Units with high SEER and inverter techonlogy save you a lot of money on electricity bills. As much as $50 per month approx. So if you have a high SEER unit with Inverter which is $300 - $400 more than the standard unit with SEER 13, you still will be better off buying the expensive one, as after 6-8 months savings are all yours plus such units are lot more advanced with many other good features.
How does Inverter work?
INVERTER technology delivers precise cooling or heating power as per your choice.
It works faster and saves energy while ensuring uniform temperature.
In Depth details:
The inverter tag found on some air conditioners signifies the ability of the unit to continuously regulate its thermal power flow.
Traditional reverse-cycle air-conditioners use a heat pump that is either working at maximum capability or switched off, as the compressor's speed cannot be varied. In order to regulate temperature a thermistor is used to measure the ambient air temperature and switch the compressor on when the ambient air temperature is too far from the desired temperature.
Air-conditioners bearing the inverter tag use a variable-frequency drive to control the speed of the motor and thus the compressor. The variable-frequency drive uses a rectifier to convert the incoming AC current to DC and then uses pulse-width modulation of the DC current within an inverter to produce AC current of a desired frequency. The AC current is used to drive a brushless motor or an induction motor. As the speed of a brushless motor is synchronised to the frequency of the AC current, it is thus possible to build a compressor that can be run at different speeds. Similarly, the voltage and frequency can be varied as needed to efficiently run an induction motor at different speeds. A microcontroller can then sample the current ambient air temperature and adjust the speed of the compressor appropriately.
Eliminating stop-start cycles increases efficiency, extends the life of components, and helps eliminate sharp fluctuations in the load the air-conditioner places on the power supply.
The inverter principle has been applied to a wide range of household appliances including microwave ovens, washing machines, and so on.
If you want Ductless split air conditioner with install kit in your package deal
Usually brands like YMGI, Senville, AirCon, Klimaire will have a package deal with installation kit included. But other brands will not come with install kits at all. In such cases we offer Copper Tubings, Service valve adpater, Condensor pads, Wall Brackets etc as optional accessories to buy. Your installer probably will already have them in his truck. If not, you can buy them separately from us when buying brands like Mitsubishi, LG, Sanyo, Friedrich etc.
Is this something that I could install myself?
YES and NO. Depends if you are good technically. You may or may not be able to do it. Some people do the handyman work on the indoor and outdoor unit and pay a small amount to an electrician to hard wire the outdoor unit and pay HVAC professional to vaccuum the lines before releasing the refrigerant. Some people choose to do it all by themselves with their past experience. Manufacturer recommends to have it installed by an HVAC professional. Any of your local professional air conditioning company should be able to install it easily for couple of hundred dollars. It is worth spending this money initially, this way you can have it installed professionally and enjoy the benefits of energy efficient mini split AC for year's to come. You may loose your warranty in some cases if you install this unit yourself. Some brands specifically require you to have an invoice from your HVAC installer to provide warranty help. So make sure to read warranty details before making your purchase.
But How easy are the units to install? For Complete Installation Guide, you can click here To ensure an easy installation and fault free operation, we recommend the unit be installed by a professional HVAC installer. Some brands will not cover warranty if installed unprofessionally by homeowner.
Does mini split air conditioner have air purification capabilities? Air filters?
Yes. Most of them have Cold catalyst air filter. BUT LG IS THE BEST IN AIR PURIFICATION WITH IT'S PLASMA AIR PURIFICATION CAPABILITIES. SEE VIDEO BELOW
How noisy are the units?
WHISPER QUIET OPERATION is one of the many reasons why they are very popular. The indoor units are typically no noisier than a standard domestic fan, but as they do make some noise, consideration should be given to their location.
|
|
Why choose a mini split air conditioner? What are the advantages of ductless split AC?
=> Whsiper quiet operation.
=> Energy efficient, save money on electric bills!
=> Lot cheaper than central air conditioner.
=> Easy installation procedure.
=> Long term solution, good for new additions or when replacing existing air conditioner.
A mini split air conditioner is a cost effective choice to central air conditioning. However, it is typically more expensive than a wall or window air conditioner and you need a professional to install it. Since the compressor sits outside the split air conditioner is very quiet and efficient. Since mini splits have no ducts, they avoid the energy losses associated with the ductwork of central forced air systems. Duct losses can account for more than 30% of energy consumption for space conditioning, especially if the ducts are in an unconditioned space such as an attic.
Mini split air conditioners are also sometimes easier to install than other types of air conditioning systems. For example, the hook-up between the outdoor and indoor units generally requires only a three inch hole through a wall for the conduit. Also, most manufacturers of this type of system can provide a variety of lengths of connecting conduits. So, if necessary, you can locate the outdoor unit as far away as 50 feet from the indoor evaporator depending upon which mini split AC you buy. This makes it possible to cool rooms on the front side of a building or house with the compressor in a more advantageous or inconspicuous place on the outside of the building.In comparison to other add-on systems, split air conditioners offer more flexibility in interior design options. The indoor air handlers can be suspended from a ceiling, mounted flush into a drop ceiling, or hung on a wall. Floor-standing models are also available with LG. Most indoor units have profiles of about seven inches deep and usually come with sleek, high tech-looking jackets.
|
| |
|
How will ductless mini split air conditioner look in my home or office? see below...
Mini Split AC is an amenity that has been designed to blend harmoniously with your home and offi ce interiors. These high performance, high quality appliances are offered in three beautiful designs. Unlike window mounted air conditioners of yesterday, the ductless mini split air conditioners are mounted high up on walls, not in windows, preserving your outdoor views for all to enjoy. See examples below:-
|
What is HSPF?
HSPF is the abbreviation for the Heating Seasonal Performance Factor. This factor rates the efficient operation of the heating portion of the heat pump. As the HSPF increases, the unit functions at a more efficient level. New units in the United States have HSPF ratings from 7.0 to 9.4.
Heating Seasonal Performance Factor-the total heating output in B.T.U's during it's normal usage period for heating divided by the total electrical energy input in watt hours during the same period
What is a Heat Pump and How Does It Work?
A Heat Pump is an electrical device that takes heat from one place and transfers it to another. A heat pump transfers heat by circulating environmentally friendly refrigerant through a cycle of evaporation and condensation. A compressor then pumps the refrigerant between two heat exchange coils. In one coil the refrigerant is evaporated at low pressure and absorbs the heat from the surroundings. The refrigerant is then compressed on the way to the other coil where it condenses at high pressure. Now the heat pump releases the heat it absorbed earlier in the cycle. This process is reversible for the summer months and the heat pump acts as a cooling system.
Why Purchase A Heat Pump?
A heat pump is the most energy efficient way to heat and cool your home.
Heat pumps utilize the renewable heat sources in our surroundings in order to produce heat. The air, ground and water provide useful heat that is warmed up by the heat pump and delivered into the home. Sources such as the air, ground and water provide more heat than realized and the heat pump makes use of these sources that are continuously heated by the sun.
WIth British Columbia's mild weather conditioins, having a heat pump is the most logical, environmentally friendly and efficient source of in-home heating and cooling.
How Do You Measure A Heat Pump's Efficiency?
Heat pumps provide both cooling and heating, so the efficiency is measured in two different ways. When the heat pump cools, a SEER rating or Seasonal Energy Efficiency Ratio measures the efficiency. The SEER rating is similar to gas mileage on a car. The higher the SEER rating the more efficient it is. Most of today's heat pumps have a SEER rating between 13.0 and 19.0 SEER. When the heat pump heats the home, a Heating Seasonal Performance Factor or HSPF rates the efficiency. The HSPF rating works the same way as the SEER rating does. The higher the HSPF, the more efficient the system is. Most new units today have a HSPF rating between 7.7 to 9.0 HSPF.
How does an air conditioner work?
An air conditioner seems as if it cools your home's air, but it actually makes your home less warm by removing heat from the indoor air and transferring that heat to the outdoor air. Heat is extracted from the home by passing indoor air across a refrigerant coil in the indoor unit. Refrigerant lines then carry the heat to the outdoor unit, where it is released into the outside air. The cooling cycle continues until the indoor temperature reaches the thermostat setting.
What does SEER mean?
Season Energy Efficiency Ratio. It is a system for rating the efficiency of air conditioning equipment. SEER is calculated by dividing the cooling capacity in BTU/H, of a continuously operating air conditioner, by the electric power input, or watts, of power consumed. The higher the SEER, the less the unit should cost to operate.
What is R-410A?
R-410A is a hydro fluorocarbon (HFC), which is an environmentally friendly refrigerant that is considered by most to be the likely replacement for R-22.
What is Freon/R-22?
Hydrochlorofluorocarbon (HCFC), known as R-22 has been used as a refrigerant for more than 40 years by HVAC manufacturers. While HCFC's are considered safe for the environment they do contain chlorine which is classed as an ozone-depleting chemical. The Clean Air Act set a target date of January 1, 2010 after which HVAC manufacturers can no longer build products that use R-22. Manufacturers of refrigerants will still be allowed to produce R-22 until January 1, 2020 after which time only recovery and recycling will provide R-22 for servicing older installed systems.
Is The Refrigerant Used In A Heat Pump Safe For The Environment?
Both Carrier and Lennox heat pumps use envronmentally friendly R-410A refrigerant. This refrigerant does not deplete the ozone layer and is seen as the logical replacement for Freon R-22. Carrier beat the competition by six years and introduced Puron refrigerant or R-410A. Use of R-410A adds to the efficiency and realiability of a heat pump.
Are there any good reasons for replacing my existing system if it is still functioning?
You should consider replacing your system if it is old, and therefore less efficient or if it will probably need major repairs in the near future. New systems can be 60% more efficient than systems built only 10 years ago. Normal wear and tear can reduce the efficiency of your system. Another costly season of utility bills or paying for an expensive failed part can go a long way toward the cost of a new system.
How do I know what to buy?
Make sure the unit that you select is the correct size for your needs. Systems that are too large or too small can be inefficient. We would be pleased to provide an energy analysis to show you the true operating cost. If someone in the family has allergies, an air filtration system should be part of the installation.
What does it mean to zone my house and why should I zone my house?
A zoning system is designed for the many ways you use your home. Maybe you're caught up in family "thermostat wars"? Or perhaps you have unoccupied areas that do not need conditioning? A Lennox® zoning system allows you to divide your home into separate areas, giving you the comfort and control you've always wanted. The main benefits of residential zoning are: Comfort Zoning meets the specific temperature and airflow requirements of one area, without affecting other areas. Efficiency A properly designed zoning system can save you hundreds of dollars in energy costs each year. Control Zoning divides the home into different areas and comfort into different levels, giving you more choices and control than ever before. Quiet Performance When integrated with variable speed and/or two-stage HVAC systems, zoning allows your heating and cooling equipment to deliver peak performance and efficiency without continually operating at peak capacity. Lower speeds mean lower sound levels.
What else might be needed if I replace my old system?
Beside the installation of new equipment, other items need to be inspected and possibly replaced, such as, thermostat, ducts, refrigerant piping, electrical service, wiring, condensate piping, insulation, flue piping and terminations, chimney liner, slabs, filter, registers, grills, drain pans and evaporator coil.
Should I change my indoor coil?
When replacing your air conditioner or heat pump the answer is probably yes. If only the outdoor portion is changed the efficiency of the entire system could be lowered and consequently your savings could be less.
How long should my unit last?
With proper maintenance, industry averages suggest that an air conditioner should last 12-15 years (high humidity/salt air applications may be less than that) and a gas furnace should last as long as 20 or 25 years.
How often should I change or clean my filters?
Dirty filters should be replaced to prevent equipment from working harder, resulting in energy waste and possibly causing damage to your unit. Filters should generally be replaced every month when the system is running. Filters should be replaced with the same kind and size as your original filter. If the filter is not disposable, follow the manufacturer’s instructions for cleaning it.
Should I cover my outdoor unit in the winter?
Covering the unit is not necessary. Air conditioners are built to withstand a wide range of climate changes. Rain even helps keep your unit clean. Since heat pumps run all year long, they should not be covered.
Should I set my thermostat fan to the "ON" position so the fan runs all the time? (not available with all brands and models)?
There are advantages. One is full-time filtering of the air in your home. Another is that you can maintain a more even temperature throughout your home.
What causes indoor air pollution?
Many everyday household items contribute to poor indoor air quality. Compounds found in carpeting, furniture, upholstery and drapery fabric consistently emit gas or fumes. Other sources of pollutants can include, but are not limited to, cleaning agents, paints and personal care products. Also, newer homes that are tightly sealed for energy efficiency tend to limit air circulation, which can contribute to a buildup of contaminants. Likewise, things like weather stripping and storm doors keep stale air in and fresh air out.
How can I improve my indoor air quality?
There are five basic strategies for outsmarting indoor air pollution: Identify the problem:
The first step toward better indoor air is to identify the types of pollutants present in the home. The best way to do this is to schedule an in-home air-quality test. Reduce concentrations of particles and bioaerosols
Routine cleaning and housekeeping helps reduce indoor air pollutants, but these simple fixes are not cure-alls. Some contaminants are so small that they may escape through the vacuum or never land on a surface. Lennox HEPA filtration systems, electronic air cleaners, high-efficiency air filters capture even the smallest of particles and bioaerosols. Reduce or eliminate chemical vapors and odors
Chemical vapors and odors can come from many different sources inside and outside the home. Once inside the home, these potentially toxic pollutants circulate through the ductwork, entering every room and living space. A Lennox air purification system removes and destroys 50% of household chemical vapors and odors within 24 hours. Ventilate Your Home
Today's modern homes are well-insulated and sealed to conserve energy, which means airborne pollutants have no way to escape. Lennox® ventilation systems help remove particles and bioaerosols by exchanging stale, recirculated indoor air with fresh, filtered outside air.
Control Temperature and Humidity
Improper humidity levels and high temperatures can actually increase concentrations of particles and bioaerosols. Lennox SignatureStat™ and thermostats regulate moisture levels and temperatures to improve indoor air quality and enhance comfort.
For Complete Installation Guide, you can click here |
| |
SHIPPING DETAILS
Mostly All Of Our Products Are Shipped Same Or Next Day
Your product will be mostly shipped using Freight Company such as SAIA, ESTES, Old Dominion, FEDEX or UPS and will be delivered in 1-5 business days depending upon your geographical location from our warehouses. We ship products from warehouses in NY, NJ, FL, CA,AZ, TX And MO. Mostly if you are close to our warehouses, you should receive the Product in 1-3 business days. We will email you your tracking number soon as its shipped out or you can log into your account on our website by using your email address and password you created at the time of placing order to check all the shipment and product details.
Please remember we only ship to 48 states within United States. Due to expensive shipment fee we do not ship to Hawaii & Alaska. We do not ship to Canada, Puerto Rico, Jamaica and other countries due to custom issues.
Though above shipment and delivery process is what we normally practice, under unforseen circumstances they cannot be guaranteed at all times. But we do our best and mostly succeed to ship the product either same or the next day.
Overnight Shipping Details (if required)
We can ship overnight or by Second Day Air. But beacuse these are air conditioners and the package weighs more than 90 pounds usually, shipping overnight can result in the package being mishandled and delivered damaged. Plus it cost anywhere from $180-$850 more than regular shipping depending upon your location from our warehouse. Feel free to email us with such enquiries.
|
Delivery Acceptance, Returns, Exchanges and Cancellation Policy. |
|
We truly appreciate your business and for the past 2 decades being in this business we have continued to do our best to earn customer trust with each transaction. We want you to be happy with your purchase.
100% Satisfaction is guaranteed with all your purchases. In case any of the RARE complications occur, we will handle them upto your best interest and satisfaction. |
|
Delivery Acceptance Terms:
If you receive a package that seems damaged or dented, please open the package in front of the driver and after inspection if you see the product has a severe damage you can refuse the package and call us immediately. We will then arrange a new shipment (Free Replacement) ASAP.
Please note: If the box looks visibly damaged, the product inside may still be in perfect condition as they are well padded for shipping purposes.
PLEASE DO NOT SIGN OR REFUSE THE PACKAGE WITHOUT INSPECTING THE CONDITION OF THE PRODUCT INSIDE. Please take pictures if needed, accept or refuse shipment based upon the condition of the product in the box, not based upon the condition of the box. Please remember if you signed off on a delivery document, insurance cannot be filed if cosmetic damage is found at a later date, as it is considered to have happened after delivery at jobsite.
If you need to get in touch with KINGERSONS, please call KINGERSONS customer service number at 1-386-951-1722 OR email us with your query. AS PER OUR WEBSITE, BELOW IS OUR EXCHANGE/RETURN POLICY FOR YOUR REFERENCE.
DEFECTIVE EXCHANGE
If unit (any product) is defective, depending upon the brand you buy, it will be taken care of by manufacturer warranty. Usually they will send out the replacement part within 24 hours, if replacing part is not a solution, they would probably replace the whole unit if the product was found defective. Replacement will only be made with the same model, if customer decides to upgrade or downgrade to a different model, we'll treat it as a return and a new order.
* All returns should be in original packaging and in brand new condition. Installed products are not considered brand new and cannot be returned.
* All damaged returns and replacements must be requested within 24 hours after the receipt of the product. *
Before shipping the product back, you should request an RA# (Return Authorization number), without an RA# your package will not be accepted, will be refused and sent back by the warehouse.
RETURNS
For all returns, customer is responsible to ship product back to our warehouse at their own expense; restocking fee of 19% will apply regardless if defective and original shipping fee (from $69 to $189 depending upon the product you purchased) will not be refunded as it is paid to the trucking company's and they are non-refundable.
CANCELLATIONS
If you placed the order and you wanted to cancel the order BEFORE IT IS SHIPPED, we will gladly cancel your order and $15.99 cancellation fee will be charged and 3% credit card processing charges will not be refunded. Please make sure that you call us within few hours after the order is placed. We ship the items out same or next business day. We cannot process cancellations after the product is shipped out. It will be considered as a return instead once the product is shipped and you will need to pay the return charges. If the delivery of the shipment is refused above return policy will apply. Once the item is shipped, the shipping company will not refund us the shipping fee back and will charge us for shipping both ways, this will not be refunded if cancelled after the product is shipped and 19% restocking fee will apply.
|
|
THANK YOU ONCE AGAIN FOR SHOPPING WITH US! | |
|
|
|
|
|
|
|
|
|
|
|
