Brand : LG Ductless Mini Split
hvac prices
Product Name : LG LS243HLV Extended Pipe 24,000 BTU Ductless Heat Pump System 21 SEER Includes LSN243HLV & LSU243HLV

Item# :
LSN243HLV LSU243HLV
Your Price :
Choose QTY :
heat pump splits

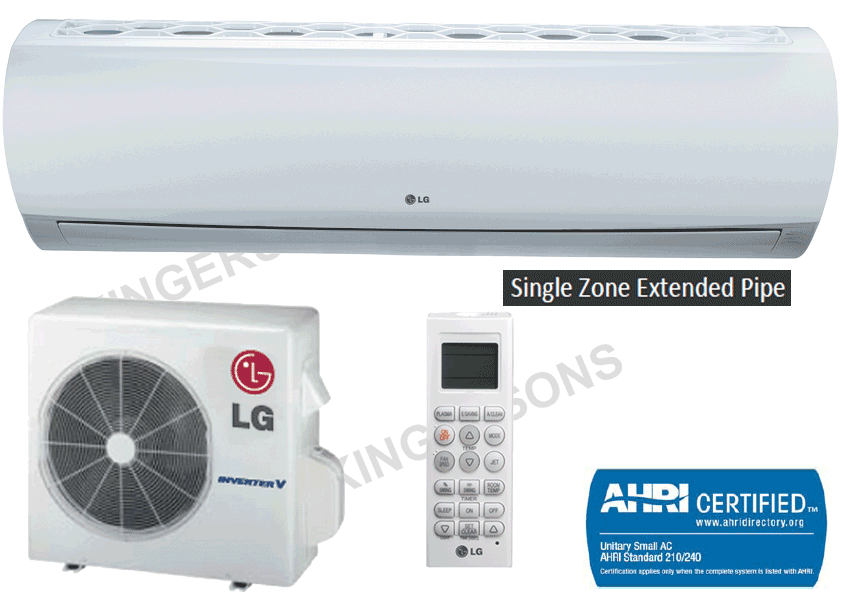

An LG Single Zone Extended Pipe system offers improved piping capability and allows for longer pipe length (up to 164 feet) and higher elevation differences (up to 98.4 ft). This single zone system also features low ambient heating operation down to -4°F making these units a viable option as a primary heat source! The LG LS243HLV features a SEER of 21.5 and uses R-410A refrigerant. While this ductless unit will keep you cool with its 22,000 BTU Cooling Capacity, you can also stay warm with the 27,000 BTU heat pump.

The LG Extended Piping Mini Splits now feature remote access via WiFi and smartphone app with SmartThinQ. The app is compatible with either Android or Apple  devices.

Features Include:
  • Chaos Swing - Electronically controlled louvers and fan speeds creating a more natural, random flow of air, reducing temperature stratification.
  • Inverter - Inverter heat pump air conditioners use a variable speed compressor, rather than the constant speed found in conventional ACs. Instead of shutting off once the desired temperature is reached, the inverter compressor continues to operate at low speed to maintain that temperature. It is quieter to operate and uses less energy than conventional ACs, which cycle on and off.
  • Dehumidifying Mode - Indoor unit accurately senses room temperature and controls humidity by shutting down the compressor before a room is over-cooled.
Some of the upgraded features of this series include:
  • Inverter (Variable speed compressor)
  • Long piping lengths (up to 164 ft)
  • High elevation differences (up to 98.4 ft)
  • Operates down to 14°F in cooling mode
  • R-410A Refrigerant
  • Self-cleaning indoor coil
  • Cooling/Heating/Fan mode
  • Jet cool/Jet heat
  • Chaos Wind
  • 4-Way Auto Swing
  • Ultra quiet operation
  • Sleep mode
  • Dehumidifying mode
  • Auto restart
  • Auto Changeover
  • 24-Hour on/off timer
  • Condensate sensor connection
  • Plasma air purifying system
Unit must be installed by a qualified, licensed HVAC technician. Manufacturer covers parts only under warranty. Installer is responsible for labor warranty.

This item replaces the LSU240HLV

Bundle Includes

LG-LSU243HLV, LG-LSN243HLV
Indoor Unit Type

Wall Mount
EER

12.5
SEER

21.5
Energy Star

No
Cooling BTUs

22000
Cooling BTU Output Range

3070 - 29515
Cooling Amps

14.85
Dehumidification (pts/hr)

5.5
Includes Heat Pump

Yes
Heat Pump BTUs

27000
Heating BTU Output Range

3070 - 38898
Heat Pump Heating Amps

14.85
HSPF (non-ducted)

11
CFMs

953 / 848 / 706 / 530 (Max / H / M/ L)
Fan Speeds

6
Room Size Coverage

Extra Large 800+ Sq. Ft.
Min. Indoor Noise Level (dBA)

37
Indoor Noise Level (dBA)

49 / 44 / 40 / 37 (H / M / L / Sleep)
Outdoor Unit Noise Level (dBA)

55
Control Type

Hand Held Remote
Wired Thermostat Optional

Yes
Voltage

208-230V
Circuit Breaker Size (Amps)

35
Line Set Liquid Line

3/8"
Line Set Suction Line

5/8"
Maximum Elevation (ft.)

98.4
Maximum Pipe Length (ft.)

164
Pipe Length (No Addl Refr Req)

24.6
Operating Range - Cooling

14°F - 118°F
Operating Range - Heating

-4°F - 65°F
Min. Outdoor Temp for Heat °F

-4
Inverter Technology

Yes
Indoor Unit Width (in.)

46.875 "
Indoor Unit Depth (in.)

10.434 "
Indoor Unit Height (in.)

13.625 "
Outdoor Unit Width (in.)

34.25 "
Outdoor Unit Depth (in.)

12.625 "
Outdoor Unit Height (in.)

31.5 "
Indoor Unit Weight (lbs.)

40
Outdoor Unit Weight (lbs.)

125
Parts Warranty

10 Years
Labor Warranty

None
Compressor Warranty

10 Years
