Brand : Mitsubishi Ductless Mini Split
hvac prices

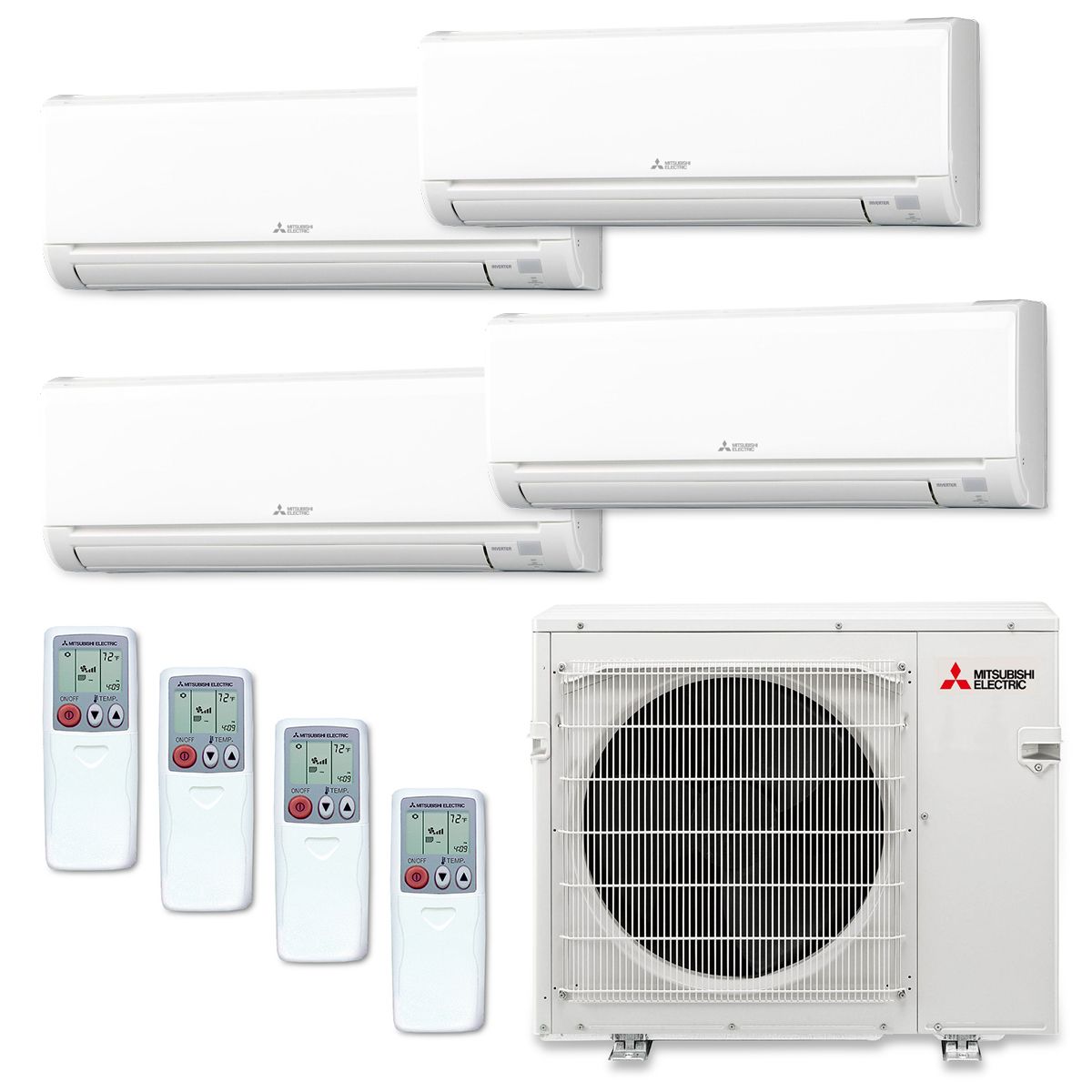

Product Name : Mitsubishi Quad Zone MXZ8C48NA MSZFH09NA (TWO) MSZFH12NA MSZFH18NA hyper heat ductless split AC Heat Pump

Item# :
MXZ8C48NA MSZFH09NA-09-12-18
Your Price :
Choose QTY :
heat pump splits

OUTDOOR UNIT MXZ8B48NA:

Product Specifications


Weight: 278.00 lb.


Mitsubishi MXZ8B48NA System Specifications:
Outdoor Unit Model: MXZ-8B48NA
Performance:
EER: 8.3
SEER: 15.0
HSPF 8.7
Rated Cooling Capacity (BTU): 48,000
Maximum Cooling Capacity (BTU): 54,000
Rated Heating Capacity (BTU): 54,000
Maximum Heating Capacity (BTU): 60,000
Air Circulation (CFM): 3,530
Fan Type x Quantity: Propeller x 2
Compressor Type: DC Inverter-driven Scroll
Motor Output kW: 2.9
Outdoor dB(A): 55
Protection Devices:
High Pressure: High Pressure Switch
Compressor: Discharge Thermo/Overcurrent Detection
Fan Motor: Overheating/Voltage Protection
Electrical:
Rated Voltage Outdoor: 208/230-1-60
Recomended Fuse Size: 50Amp
MCA: 32A
Electrical Connections to Indoor Units:
Indoor-Outdoor S1-S2: AC 208/230V
Indoor-Outdoor S2-S3: DC 12-24V
Dimensions:
Outdoor Dimensions WxHxD (inches): 37-7/16 x 13-13/16 x 53-3/16
Outdoor Weight (lbs): 278.0
Refrigerant Piping:
Liquid Side ( Inches O.D.): 3/8
Suction Side ( Inches O.D.): 5/8
Additional Refrigearnt (Oz/Ft): .22
Maximum Pipe Lenghts (Ft): 377
Maximum Pipe Elevation Above Indoor (Ft): 98
Maximum Pipe Elevation Below Indoor (Ft): 66
Operating Range:
Cooling (F): 23-115
Heating (F): 5-70
INDOOR UNIT MSZFE09NA8:
Product Specifications

Performance Data:
Capacity, (BTU): 9000
Voltage: 208 / 230
Fuse Size, (A): 15
Minimum Amperage: 1
Airflow at Cooling, Speed Specific, Dry, (CFM): 381-339-226-162
Airflow at Cooling, Speed Specific, Wet, (CFM): 343-307-202-144
Airflow at Heating, Speed Specific, Dry, (CFM): 381-367-240-166
Moisture Removal, (Pints / hr): 2.1
Sound Output, Speed Specific, (dB): 42-40-31-22
Dimensional Data:
Remote Type: Wireless
Width, (in): 31.375
Depth, (in): 10.125
Height, (in): 11.625
Suction Diameter, (in): 3/8
Discharge Diameter, (in): 1/4
Weight, (lbs): 27
Warranty Data:
Parts Warranty: 5 Years

INDOOR UNIT MSZFE12NA8:

Product Specifications

Weight: 27.00 lb.
MSZFE12NA8 Indoor Unit Performance:
Rated Cooling Capacity (BTU): 12000
Rated Heating Capacity (BTU): 13,600
MSZFE12NA8 Indoor Unit Power:
Power Supply: 1-phase, 60Hz, 208 / 230V *2
Voltage Indoor - Outdoor S1 - S2: AC 208 / 230V
Voltage Indoor - Outdoor S2 - S3: DC12-24V
MSZFE12NA8 Indoor Unit Specifications:
MCA (A): 1.0
Airflow at Cooling Lo-Med-Hi Dry (CFM): 162-226-381-410
Airflow at Cooling Lo-Med Wet (CFM): 144-202-350-367
Airflow at Heating Lo-Med-Hi (CFM): 166-240-399-420
Cooling Sound Pressure Lo-Med-Hi (dB): 22-33-43-45
Heating Sound Pressure Lo-Med-Hi (dB): 22-23-43-44
External Finish Color: Munsell No. 1.0Y 9.2 / 0.2
MSZFE12NA8 Indoor Unit Dimensions:
Width (Inches): 31-7/16
Depth (Inches): 10-1/8
Height (Inches): 11-5/8
Weight (lbs): 27
Field Drainpipe Size O.D. (Inches): 5/8
Remote Control Type: Wireless
MSZFE12NA8 Indoor Unit Connections:
Gas Side O.D. (Inches): 3/8
Liquid Side O.D. (Inches): 1/4
Mitsubishi Warranty:
Compressor: 7 Years
Parts: 5 Years

INDOOR UNIT MSZFE18NA:

Mitsubishi MSZ-FE18NA8 Specifications:
Capacity, (BTU): 22500
Voltage: 208 / 230
Fuse Size, (A): 20
Minimum Amperage: 1
Airflow at Cooling, Speed Specific, Dry, (CFM): 738-628-469-388
Airflow at Cooling, Speed Specific, Wet, (CFM): 661-562-420-347
Airflow at Heating, Speed Specific, Dry, (CFM): 738-628-469-388
Moisture Removal, (Pints / hr): 2.7
Sound Output, Speed Specific, (dB): 53-49-41-34
Remote Type: Wireless
Width, (in): 43.3125
Depth, (in): 9.375
Height, (in): 12.8125
Suction Diameter, (in): 5/8
Discharge Diameter, (in): 3/8
Weight, (lbs): 37
Parts Warranty: 5 Years
